ADLINK introduces ATX motherboard for industrial automation applications

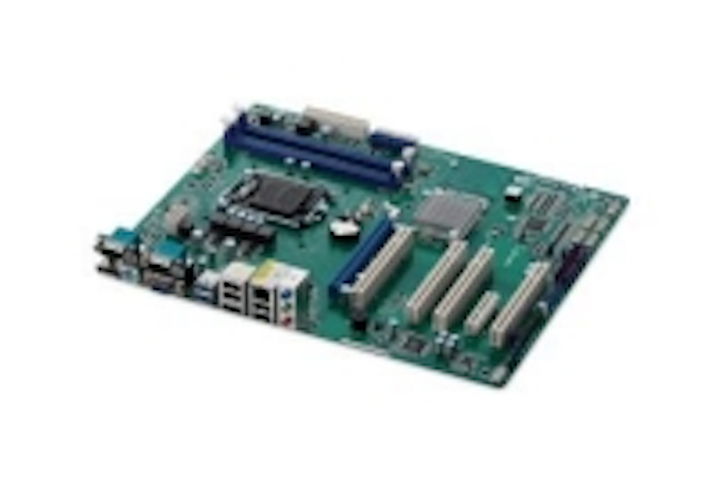

ADLINK Technology’s IMB-M42H is an industrial ATX motherboard featuring the 4th gen Intel Core i7/i5/i3/Pentium/Celeron processor family and Intel H81 chipset.

Content Dam Vsd En Articles 2014 11 Adlink Introduces Atx Motherboard For Industrial Automation Applications Leftcolumn Article Thumbnailimage File

ADLINK Technology’s IMB-M42H is an industrial ATX motherboard featuring the 4th gen Intel Core i7/i5/i3/Pentium/Celeron processor family and Intel H81 chipset. The board features a PCIe x16 Gen2 slot for graphics, a PCIe x4 Gen2 slot for frame grabbers, and four PCI slots for motion and I/O cards, ideally for industrial automation applications. The card also has 6 COM ports (COM1/2 supporting RS232/422/485, COM1 supporting RS-485 automatic flow control for network communications), 10 USB ports (2 USB 3.0, 8 USB 2.0), and 8-bit 4-in/4-out API sample code-ready GPIO. In addition, an Intel i217V Giga LAN interface enables connection to USB 3.0 or GigE cameras without requiring extra USB 3.0 or NIC cards.

To Learn More:

Contact: ADLINK Technology, Inc.
Headquarters: San Jose, CA, USA
Product:
IMB-M42H ATX motherboard
Key Features: the 4th gen Intel Core i7/i5/i3/Pentium/Celeron processor family and Intel H81 chipset, PCIe x16 Gen2 slot, PCIe x4 Gen2 slot, four PCI slots, 10 USB ports.

What ADLINK says:
View more information on the IMB-M42H.
