CoaXPress frame grabber from Euresys offers 12.5 Gbps data rate per connection

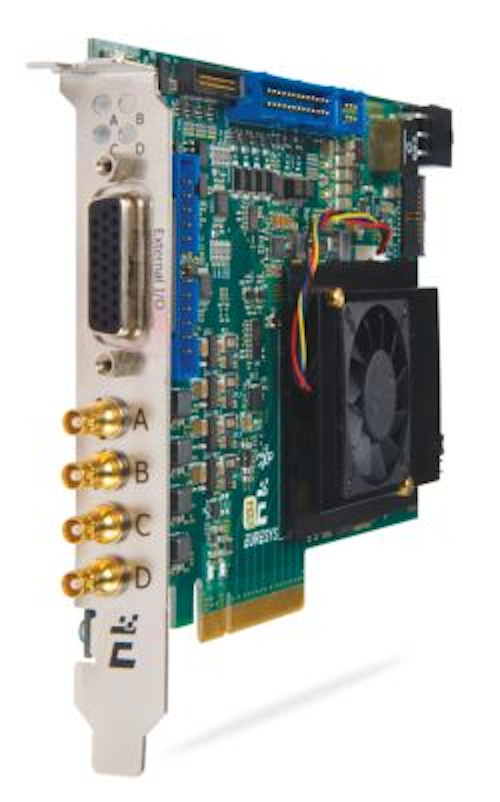

Featuring four CoaXPress (CXP-12) connections, the Coaxlink Quad CXP-12 from Euresys offers an increased maximum connection bit rate of 12.5 Gbps, compared to the previous maximum data rate over a single connection of 6.25 Gbps.

Content Dam Vsd En Articles 2018 07 Coaxpress Frame Grabber From Euresys Offers 12 5 Gbps Data Rate Per Connection Leftcolumn Article Headerimage File

Featuring four CoaXPress (CXP-12) connections, the Coaxlink Quad CXP-12 from Euresys offers an increased maximum connection bit rate of 12.5 Gbps, compared to the previous maximum data rate over a single connection of 6.25 Gbps. In total, this results in a maximum camera data transfer data over four connections of 5 GByte/s allowing operation of a 10-bit 12 MPixel area-scan sensor at more than three hundred images per second, or an 8-bit 16k line-scan sensor at 300 thousand lines/s.

Additionally, the frame grabber offers a PCIe 3.0 (Gen 3) x8 bus with 6.7 GBytes/s bandwidth, 20 digital I/O lines, camera control functions, and the Memento Event Logging Tool.

To Learn More:

Contact:Euresys
Headquarters
: Angleur, Belgium
Products:
Coaxlink CXP-12 CoaXPress frame grabber
Key Features:
Four-connection CXP-12 frame grabber with maximum connection bit rate of 12.5 Gbps (total of 5 GByte/s), PCIe 3.0 (Gen 3) x8 bus with 6.7 GBytes/s bandwidth, Memento Event Logging Tool.

What Euresys says:
View more information on the Coaxlink CXP-12.
