10 GigE camera line expands with Pregius S sensor models

March 22, 2021
The new cameras are designed for OEM medical, life science, and industrial imaging applications.

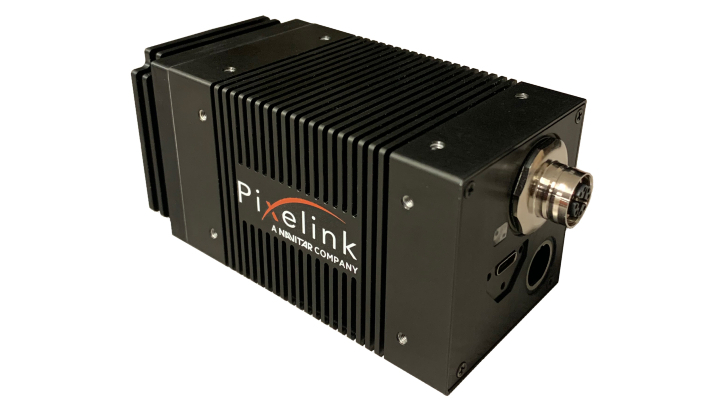

The PL-X 10 GigE camera line has been expanded with two new models featuring Sony Pregius S global shutter image sensors with backside illumination.

The PL-X9520 is based on the IMX531 20 MPixel CMOS image sensor, in 1.1-inch format, that offers 4512 x 4512 resolution. The PL-X9524 model is based on the IMX530 24 MPixel image sensor, in 1.2-inch format, that offers 5328 x 4608 resolution.

Both models feature 10G Base-T interface, Power-over-Ethernet and Trigger-over-Ethernet, and support cable lengths up to 100 m. They are available in color or monochrome and enclosed or board versions.


To Learn More:

Contact: Pixelink
Headquarters: Ottawa, ON, Canada
Product: PL-X9520 and PL-X9524 cameras.
Key Features: IMX531 and IMX530 image sensors, 10G Base-T interface, PoE and ToE, color or monochrome, enclosed or board versions.

What Pixelink says:
View more information on the PL-X9520 and PL-X9524 cameras.
