Light grid designed for space-constrained applications

Nov. 5, 2021
The grid offers robust customization options for detection specifications.

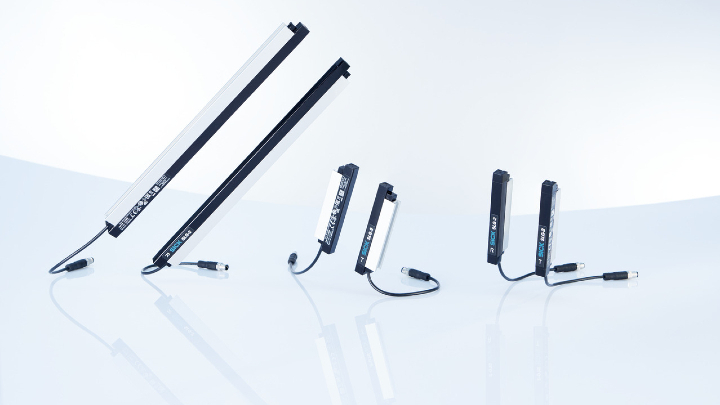

The SLG-2 light grid is designed for high-performance detection and measurement applications. It is available in beam separations of 10, 25, and 50 mm; achieves a resolution of 6.5 mm in multiple cross beam mode; and can detect objects thinner than 1 mm. Detection heights are between 100 and 2400 mm and can be adjusted in 100 mm increments.

With a 12 x 24 mm footprint, the SLG-2 is designed for space-constrained applications. A slim variant with light emission through the thin side of the device and a flat version with optics opening in the flat housing profile are available. The light grid comes standard with IO-Link communication, for Industry 4.0 applications.

To Learn More:

Contact: SICK
Headquarters: Waldkirch, Germany
Product: SLG-2 light grid
Key Features: beam separations of 10, 25, and 50 mm, 6.5 mm resolution, between 100 and 2400 mm detection height, 12 x 24 mm footprint.

What SICK says:
View more information on the SLG-2 light grid.
