Vieworks introduces new line of hybrid TDI line scan cameras

Learn more about Vieworks' latest industrial cameras, which are hybrid TDI line scan cameras that take advantage of both CCD and CMOS image sensors. The cameras are available in both CoaXPress and Camera Link models and are suitable for use in such applications as flat panel display inspection, printed circuit board inspection, and high resolution document scanning.

Content Dam Vsd En Articles 2015 07 Vieworks Introduces New Line Of Hybrid Tdi Line Scan Cameras Leftcolumn Article Thumbnailimage File

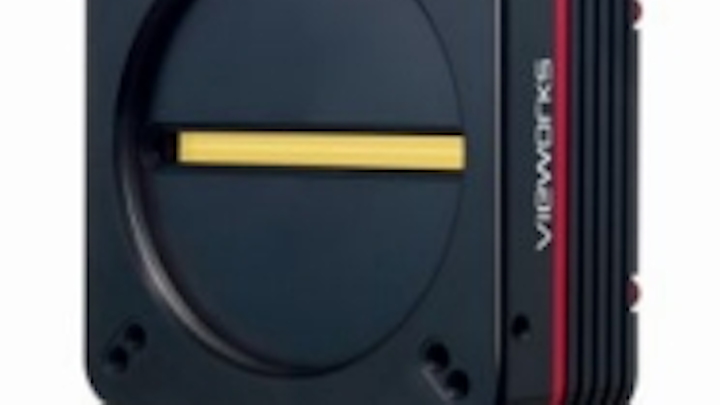

Designed for applications where high sensitivity and fast line rates are critical, the VT series of cameras from Vieworks are hybrid TDI line scan cameras that take advantage of both CCD and CMOS image sensors. The cameras are available in both CoaXPress and Camera Link models. The VT CoaXPress cameras are as follows:

  • VT-18KX-H80: 17824 x 256 pixel array, 80 KHz line rate, 3.5 µm pixel size
  • VT-12KX-H100: 12480 x 256 pixel array, 100 KHz line rate, 5 µm pixel size
  • VT-12KX-S100: 12480 x 64 pixel array, 100 KHz line rate, 5 µm pixel size
  • VT-9KX-H120: 8912 x 128 pixel array, 120 KHz line rate, 7 µm pixel size

The Camera Link models are as follows:

  • VT-18KC-H40: 17824 x 256 pixel array, 40 KHz line rate, 3.5 µm pixel size
  • VT-12KC-H60: 12480 x 256 pixel array, 60 KHz line rate, 5 µm pixel size
  • VT-12KC-S60: 12480 x 64 pixel array, 60 KHz line rate, 5 µm pixel size
  • VT-9KC-H80: 8912 x 128 pixel array, 80 KHz line rate, 7 µm pixel size
  • VT-4KC-H120: 4096 x 128 pixel array, 120 KHz line rate, 14 µm pixel size
  • VT-4KC-S120: 4096 x 128 pixel array, 120 KHz line rate, 7 µm pixel size

VT series line scan cameras, which are designed to support bidirectional operations, are suitable for use in such applications as flat panel display inspection, printed circuit board inspection, and high resolution document scanning.

To Learn More:

Contact:
Vieworks
Headquarters
: Seongnam-si, Gyeonggi-do, South Korea
Product:
VT series of hybrid TDI line scan cameras
Key Features: Hybrid line scan imagers ranging from 8912 x 128 to 17824 x 256, CoaXPress and Camera Link models, CCD and CMOS sensors.
