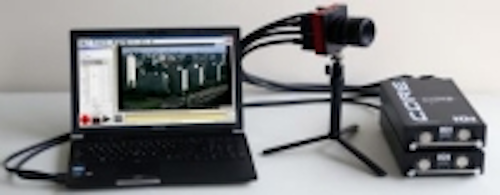

Luster LightVision Co. Ltd.—a distributor for IO Industries—will showcase the Flare 12M125MCL machine vision camera and the DVR Express Core recording unit at its Vision China booth. The 12 MPixel monochrome Flare 12M125MCL features a 12 MPixel CMV12000 CMOS image sensor from CMOSIS with 5.5 µm pixel size. Two 10-tap Camera Link interfaces are used for image output, including an 8-bit format which allows full 4,096 x 3,073 imaging at 124 fps and a 10-bit format which allows full resolution imaging at 99 fps. The Flare 12M125xCL also features global shutter operation, programmable exposure modes with HDR options, and auto exposure and color balancing.
In addition, Luster LightVision will showcase IO Industries’ DVR Express Core uncompressed recording units for Camera Link cameras. These units feature uncompressed recording to removable solid state drives and remote control via external computer,.
Vision China booth number: N1-1342
To Learn More:
Headquarters: London, ON, Canada
Product: Flare 12M125MCL camera.
Key Features: CMV12000 CMOS image sensor, 5.5 µm x 5.5 µm pixel size, two 10-tap Camera Link interfaces, and 8- and 10-bit digital formats.
What IO Industries says:
View more information on the Flare12M125MCL camera.
View more information on the DVR Express Core.
