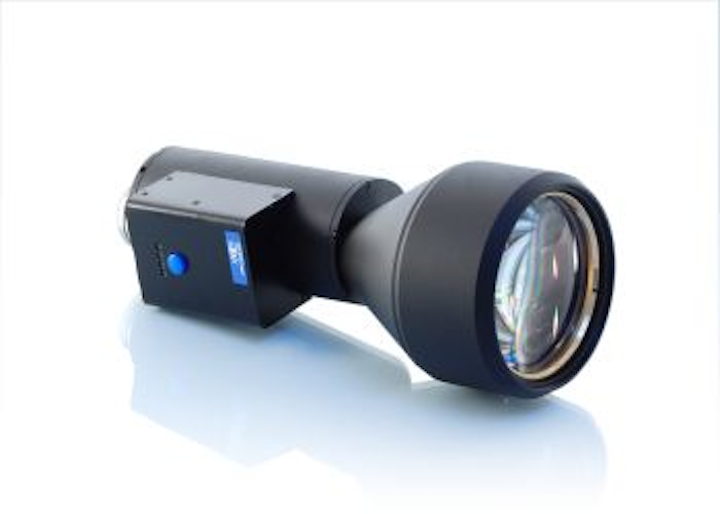

• Bitelecentric lenses offered by Opto Engineering zoom with motorized control

    Opto Engineering's Multi Mag Optics TCZR Series lenses support imaging and measurement applications requiring the flexibility of zoom lenses and accuracy of fixed optics.
    Jan. 10, 2013
    2 min read

    Multi Mag Optics TCZR Series lenses support imaging and measurement applications requiring the flexibility of zoom lenses and accuracy of fixed optics. Four different magnifications, featuring a total range of 8X, can be selected either by means of the onboard control keyboard or via computer through a specific remote control software. Bitelecentricity, high resolution, and low distortion make the zoom lenses able to perform the same measurement tasks as a fixed magnification telecentric lens.
    Opto Engineering
    Mantova, Italy

    -- Posted by Vision Systems Design

    View More Vision+Automation Products

    Locate a vendor or system integrator in our Online Buyer's Guide

    ---

    NEW PRODUCT PRESS RELEASE

    PRODUCT HIGHLIGHT SHEET

    Multi Mag OPTICS

    www.opto-engineering.com

    TCZR Series can be coupled with LTCL and LTRN illuminator series

    8X BI-TELECENTRIC ZOOM LENSES with motorized control TCZR Series is a leading edge optical solution for imaging and measurement applications requiring both the flexibility of zoom lenses and the accuracy of fixed optics.

    By means of a very accurate mechanism, these lenses ensure unequaled magnification, focusing and image center stability when switching from a magnification to another, thus avoiding recalibration at any given time.

    4 different magnifications, featuring a total range of 8x, can be selected either by means of the onboard control keyboard or via computer through a specific remote control software.

    Bitelecentricity, high resolution and low distortion make these zooms able to perform the same measurement tasks as a fixed magnification telecentric lens.

    Key Advantages
    Perfect Magnification constancy: no need of re-calibration, after zooming
    Perfect Parfocality: no need of refocusing when changing magnification
    Bi-telecentricity: very accurate measurement is possible
    Image Center Stability: each magnification maintains its FOV center
    Full Motorization control: zoom magnification is set either manually or via software

    SOURCE: Opto Engineering
