Andor Technology releases Beryillium window CCD cameras

Andor Technology has announced the release of the iKon-M SY and Newton SY series of cameras, which feature a 200 µm-thick light tight Beryllium window that gives an 8% increase in transmission at 3 keV over industry-standard 250 µm windows.

Content Dam Vsd En Articles 2014 03 Andor Technology Releases Beryillium Window Ccd Cameras Leftcolumn Article Thumbnailimage File

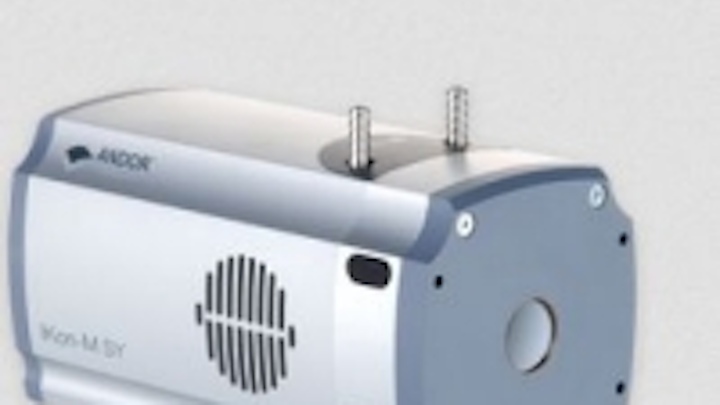

Andor Technology has announced the release of the iKon-M SY and Newton SY series of cameras, which feature a 200 µm-thick light tight Beryllium window that gives an 8% increase in transmission at 3 keV over industry-standard 250 µm windows. The cameras offer -148°F (-100°C) deep cooling optimized for the soft X-ray region. iKon-M SY 1,024 x 1,024 pixel cameras feature CCD image sensors with 13 µm x 13 µm pixel size, a max readout rate of 5 MHz, and a frame rate of 4.4 fps at full resolution. Newton SY cameras are available in 1,024 x 255 or 2,048 x 512 pixel models and feature CCD image sensors with either 26 µm x 26 µm or 13.5 µm x 13.5 µm pixel size. In addition, the Newton SY cameras feature a max readout read of up to 3 MHz. Both cameras feature USB 2.0 interface and are integrated and supported in a range of third-party software using Andor’s SDK, including MATLab, LABView and EPICs. These cameras are suitable for use in soft X-ray imaging and X-ray fluorescence applications.

To Learn More:

Contact:Andor Technology
Headquarters: Belfast, UK
Product:
 iKon-M SY and Newton SY cameras
Key features:
-148°F (100°C) deep cooling, 200 µm-thick light tight Beryllium window, 13 µm x 13 µm pixel size, frame rate of 4.4 fps at full resolution (iKon-M SY), 26 µm x 26 µm or 13.5 µm x 13.5 µm pixel size, max readout read of up to 3 MHz (Newton SY).

What Andor says:
View more information on the iKon-M SY.
View more information on the Newton SY.
