PCO introduces two new sCMOS cameras

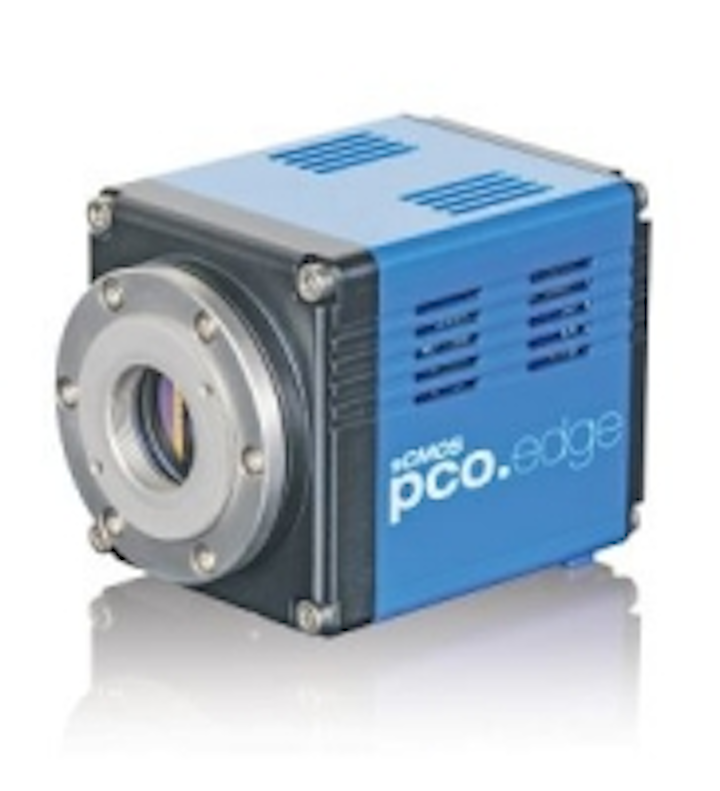

Featuring sCMOS image sensors from Fairchild Imaging, the pco.edge 3.1 and pco.edge 4.2LT cameras are designed specifically for research applications.

Dec 22nd, 2014
Content Dam Vsd En Articles 2014 12 Pco Introduces Two New Scmos Cameras Leftcolumn Article Thumbnailimage File

Featuring sCMOS image sensors from Fairchild Imaging, the pco.edge 3.1 and pco.edge 4.2LT cameras are designed specifically for research applications. The pco.edge 3.1 is equipped with a 3.1 MPixel CIS2521 image sensor with a 6.5 µm pixel size and can achieve a frame rate of 50 fps at full resolution. It also features global and rolling shutter readout and a quantum efficiency of >60%.

The pco.edge 4.2LT camera features a 4.2 MPixel CIS2020 image sensor with a 6.5 µm pixel size and can achieve a frame rate of 40 fps at 2048 x 2048. In addition, it features >70% quantum efficiency, as well as global and rolling shutter readout. Both camera models feature a spectral range of 370 nm to 1100 nm and a USB 3.0 interface.

To Learn More:

Contact:
PCO
Headquarters
: Kelheim, Germany
Product:
pco.edge 3.1 and pco.edge 4.2LT cameras
Key Features:
3.1 MPixel sCMOS sensor, 6.5 µm pixel size, 50 fps , USB 3.0 interface (pco.edge 3.1), 4.2 MPixel sCMOS sensor, 6.5 µm pixel size, 40 fps, USB 3.0 interface (pco.edge 4.2LT).

What PCO says:
View more information on PCO sCMOS cameras.
