Mikrotron to showcase 25 MPixel CMOS camera at VISION 2014

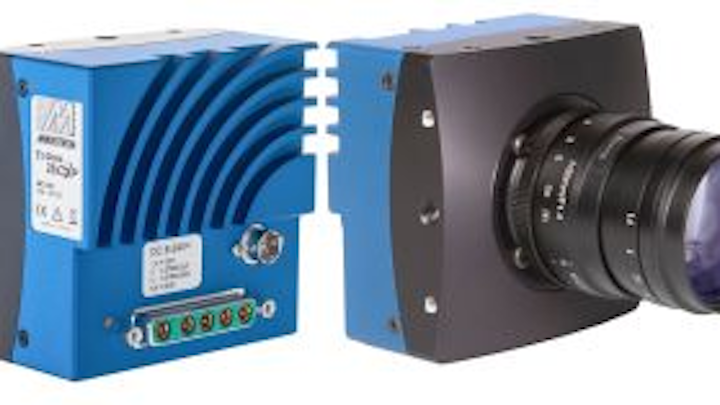

At VISION 2014, Mikrotron will showcase its latest addition to the EoSens line of CoaXPress machine vision cameras, the EoSens 25CXP.

Content Dam Vsd Online Articles 2014 09 Mikrotron Copy

At VISION 2014, Mikrotron will showcase its latest addition to the EoSens line of CoaXPress machine vision cameras, the EoSens 25CXP. The EoSens 25CXP is a 25 MPixel camera that achieves a frame rate of 60 fps. In full HD, the camera delivers 880 fps, and can offer up to 100,000 fps at reduced resolution. Furthermore, the camera features a 25 MPixel global shutter CMOS image sensor with a 4.5 µm x 4.5 µm pixel size, as well as data transmission rates of up to 6.25 Gbit/s with a single-core cable, and up to 25 Gbit/s with up to four cores. It also features a dynamic range of 53 dB, a maximum number of 32 ROIs, and 10-bit color depth. The EoSens 25CXP from Mikrotron is suitable for use in quality control in flat screens and printed circuit boards, and other factory automation applications.

VISION 2014 booth number: Booth H16 – Hall 1

To Learn More:

Contact:Mikrotron
Headquarters: Unterschleissheim, Germany
Product:
EoSens 25CXP camera
Key Features:
25 MPixel global shutter CMOS image sensor, 4.5 µm x 4.5 µm pixel size, 80 fps at full resolution, CoaXPress interface, 32 ROIs.

What Mikrotron says:
View more information on the EoSens 25CXP.

View More Products| Locate a vendor or system integrator | Receive e-mail updates

Share new products that you think are particularly interesting or helpful by contacting James Carroll, Senior Web Editor, Vision Systems Design.
