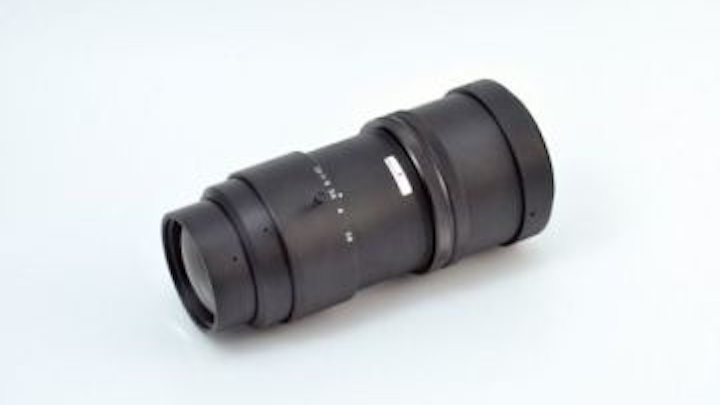

On display at SCHOTT MORITEX’s VISION 2014 booth will be two new machine vision lenses, one of which is designed for line scan cameras, and the other for large sensors. The 97.62mm focal length ML-F90C-07 lens (pictured)—which is designed for 16K/3.5 µm line scan sensors—achieves a resolution of 150 lp/mm and corrects chromatic aberrations between 400 – 700 nm. The ML-U MP9 fixed focal length lenses are available in six models with focal lengths ranging from 12.5mm to 75mm and are designed for use in 9 MPixel/3.6 µm C-Mount cameras. Both models are suitable for use in machine vision applications, including web inspection, printed circuit board inspection, automotive manufacturing, and pharmaceutical and medical inspection.
VISION 2014 booth number: Booth F31 – Hall 1
To Learn More:
Contact: SCHOTT MORITEX
Headquarters: Mainz, Germany
Product: ML-F90C-07 lens and ML-U MP9 lenses
Key Features:Designed for 16K/3.5 µm line scan sensors (ML-F90C-07), designed for 9 MPixel/3.6 µm C-Mount cameras (ML-U MP9).
What SCHOTT MORITEX says:
View more information on the ML-F90C-07 lens.
View more information on the ML-U MP9 lenses.
