PixeLINK CMOS camera captures 30.5 frames/sec at full res

PixeLINK's PL-V721-RDK color and monochrome industrial cameras employ a 1.3-Mpixel (1280 x 1024-pixel) resolution imager capable of 30.5 frames/sec at full resolution.

Aug 8th, 2012
PixeLINK CMOS camera captures 30.5 frames/sec at full res
PixeLINK CMOS camera captures 30.5 frames/sec at full res

The PL-V721-RDK color and monochrome industrial cameras employ a 1.3-Mpixel (1280 x 1024-pixel) resolution imager capable of 30.5 frames/sec at full resolution. The PL-V721 series is based on ONSemi's VITA 1300 CMOS global shutter sensor with a 1/2-in. optical format, providing a dynamic range of 53 dB in 10-bit mode. The external hardware trigger and two general purpose outputs eenable synchronization. The software developer's kit (SDK) uses a common application programming interface (API) to allow code to be ported to other models without recompiling. Applications for the camera include biometrics, security/surveillance, metrology, industrial inspection, and others.
PixeLINK
Ottawa, ON, Canada

-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---
NEW PRODUCT PRESS RELEASE

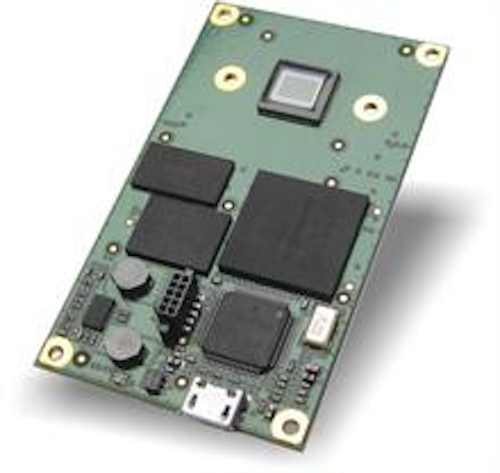

PL-V721-RDK CMOS Cameras

The PL-V721-RDK color and monochrome industrial cameras provide a 1.3 megapixel (1280x1024) resolution imager capable of 30.5 fps at full resolution. The PL-V721 series is based on the ONSemi VITA 1300 CMOS global shutter sensor with a ½” optical format providing outstanding image quality and high performance with a dynamic range of 53dB in 10-bit mode. The external hardware trigger and 2 general purpose outputs ensure users have the flexibility to synchronize the camera(s).

These designs are ideally suited for users looking to modify a flexible RDK camera design for the requirements of their Custom Camera application(s).

Common API
PixeLINK’s industry-leading SDK uses a common API for all cameras, regardless of the chosen interface. Software code developed for one camera is easily transferred to other PixeLINK® models without the need to recompile, overall system costs are reduced, and camera integration is simplified.

Multiple Applications
PL-V721-RDK cameras are particularly well suited for applications with high contrasts (e.g. shining and reflecting surfaces) such as:

- Biometrics
- High-performance security & surveillance
- Parts inspection
- Metrology
- Welding inspection
- PCB inspection & flat panel display inspection
- Security and Surveillance

SOURCE: PixeLINK
