Ocean Thin Films' multispectral UV camera employs wideband CCD detector

The SpectroCam-UV multispectral imaging camera from Ocean Thin Films provides sensitive detection from the ultraviolet (UV) spectrum across the visible spectrum and into the near-infrared (NIR).

Ocean Thin Films' multispectral UV camera employs wideband CCD detector
Ocean Thin Films' multispectral UV camera employs wideband CCD detector

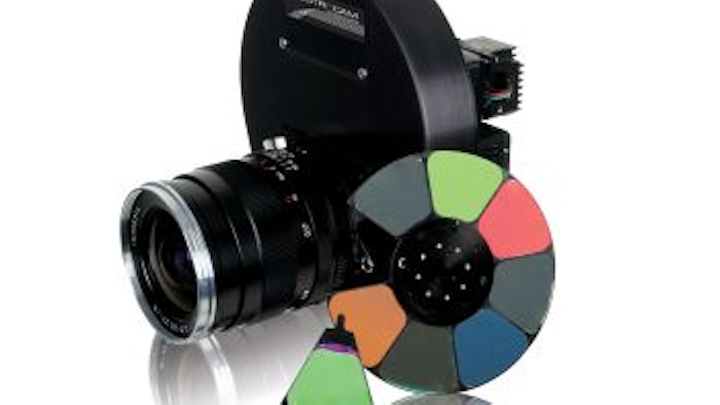

The SpectroCam-UV multispectral imaging camera provides sensitive detection from the ultraviolet (UV) spectrum across the visible spectrum and into the near-infrared (NIR). The progressive-scan camera is offered with eight interchangeable, customer-defined filters so users can test filter options. The 2/3-in. Sony ICX285 monochrome sensor features 6.45 x 6.45-micron pixels for resolution of 1392 x 1040 pixels, and can be paired with filters throughout the UVA, UVB, and UVC wavelengths. It captures up to 30 frames/sec (full frame, operation mode dependent), transferring image data over a GigE interface.
Ocean Thin Films
Golden, CO, USA

-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---
NEW PRODUCT PRESS RELEASE

Ocean Thin Films Releases Ultraviolet Multispectral Imaging Camera – SpectroCam-UV

Golden, Colorado – An ultraviolet (UV) multispectral imaging (MSI) system is now available from Ocean Thin Films. The SpectroCam-UV multispectral imaging camera provides sensitive detection from the UV across the visible spectrum and into the near-IR. The SpectroCam-UV is a powerful tool for high level research. SpectroCam (http://spectrocam.com) is the world’s first fully configurable, video-speed MSI camera. With eight interchangeable, customer defined filters, users can test many filter options, in combination with the powerful image processing software, to greatly reduce development times and speed products to market. SpectroCam makes multispectral imaging accessible to everybody from university researchers to high volume OEM equipment makers.

To accommodate an even wider scope of applications, the new SpectroCam-UV’s sensor range has been extended into the UV and can be paired with filters available throughout the UVA, UVB and UVC wavelengths. In addition to the camera, Ocean Thin Films offers turnkey UV imaging packages that include UV-compatible optics and light sources.


With a full range of standard filter wavelengths, and the ability to create custom optical filters to meet application needs, Ocean Thin Films provides the right instrument to support a wide array of applications. The SpectroCam family of cameras offers the most flexible and powerful imaging tools for biomedical, forensic, agricultural, industrial and surveillance applications. The SpectroCam platform is easily integrated into a variety of OEM systems and can be modified to meet specific mechanical and environmental needs.

To learn more about SpectroCam please visit http://spectrocam.com, email info@oceanthinfilms.com, or call +1 303.273.9700.

Company Profile:
Ocean Thin Films designs and produces precision patterned optical coatings, components and assemblies that enable a wide variety of products and custom applications, especially in the area of spectral sensing and imaging. Leveraging comprehensive know-how in thin film coating development, our team provides expert design assistance for collaborative custom-engineered solutions, from rapid prototyping through high-volume contract manufacturing. Ocean Thin Films is a subsidiary of Halma plc, an international market leader in safety, health and sensor technology.

Ocean Thin Films
8060 Bryan Dairy Road
Largo, FL 33777 USA
Tel: 727.545.0741
Fax: 727.544.2241
Email: info@oceanthinfilms.com

SOURCE: Ocean Thin Films
