3D camera for industrial robots introduced by Rubedos

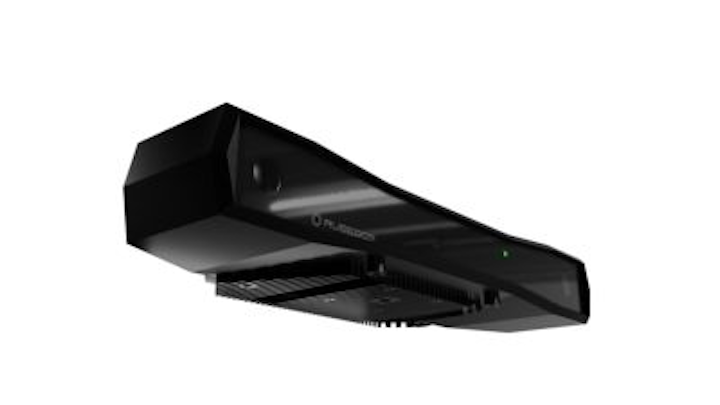

Featuring a Jetson TX2 embedded artificial intelligence computing device from NVIDIA, the new VIPER 3D camera from Rubedos is designed for next-generation industrial robots, as well as service robots.

Jan 18th, 2019
Content Dam Vsd En Articles 2019 01 3d Camera For Industrial Robots Introduced By Rubedos Leftcolumn Article Headerimage File

Featuring a Jetson TX2 embeddedartificial intelligence computing device from NVIDIA, the new VIPER 3D camera from Rubedos is designed for next-generation industrial robots, as well as service robots. VIPER features two 3.4 MPixel, low-light cameras for 3D stereo vision that offer a depth frame rate of up to 40 fps. Other features of the camera include: a 3.6 mm, fixed-focus lens, Ethernet communication, a stereo baseline of 200 mm, ROS and OpenCV integration, 246 x 98 x 35 mm dimensions, and an IP65-rated aluminum housing.

Additionally, object detection and classification tasks are performed onboard with the TX2 module using algorithms specifically designed by Rubedos, thus offloading low- and high-level image processing to the on-board processor and reserving the robot’s main computing resources for robot navigation.

To Learn More:

Contact:Rubedos
Headquarters: Kaunas, Lithuania
Product:VIPER 3D camera
Key Features: Two 3.4 MPixel low-light cameras, Jetson TX2 from NVIDIA, fixed-focus lens, ROS and OpenCV integration, on-board processing and proprietary algorithms.

What Rubedos says:
View more information on the VIPER 3D camera.
