In-Sight 7000 vision systems from Cognex feature modular design and compact form factor

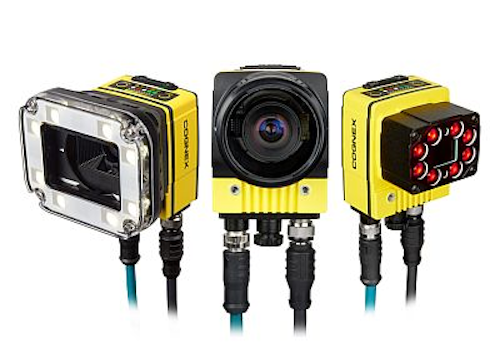

Second generation In-Sight 7000 vision systems from Cognex feature a modular design offers more than 400 different field configurations and a variety of field-changeable and user-configurable lighting and optics.

Content Dam Vsd En Articles 2017 06 In Sight 7000 Vision Systems From Cognex Feature Modular Design And Compact Form Factor Leftcolumn Article Headerimage File

Second generation In-Sight 7000 vision systems from Cognex feature a modular design offers more than 400 different field configurations and a variety of field-changeable and user-configurable lighting and optics. The systems are available in four different models: In-Sight 7600 (640 x 480 sensor, 217 fps), In-Sight 7800 (800 x 600, 165 fps), In-Sight 7801 (1280 x 1024, 76 fps), and the In-Sight 7802 (1600 x 1200, 53 fps), all of which feature C-Mount, S-Mount, and autofocus lens types. The vision systems also feature IP-67 protective housing, Cognex Flexible Image Technology—which optimizes image formation and minimizes the need for expensive external lighting—as well as a pending LED ring light that produces even, diffused illumination across the entire image, eliminating the need for costly external lighting.

Additionally, like all Cognex In-Sight vision systems, the Sight 7000 uses In-Sight Explorer to set up and monitor machine vision inspections. In-Sight Explorer features the EasyBuilder interface for setup, and vision tools such as PatMax RedLine pattern matching technology, OCRMax optical character recognition and SurfaceFX feature extraction technology.

To Learn More:

Contact:Cognex Corporation
Headquarters: Natick, MA, USA
Product: In-Sight 7000 vision systems
Key Features: Four different models with varying sensor size and speed, modular design, changeable optics and lighting, PatMat RedLine, OCRMax, and SurfaceFX vision tools.

What Cognex says:
View more information on the In-Sight 7000 series.
