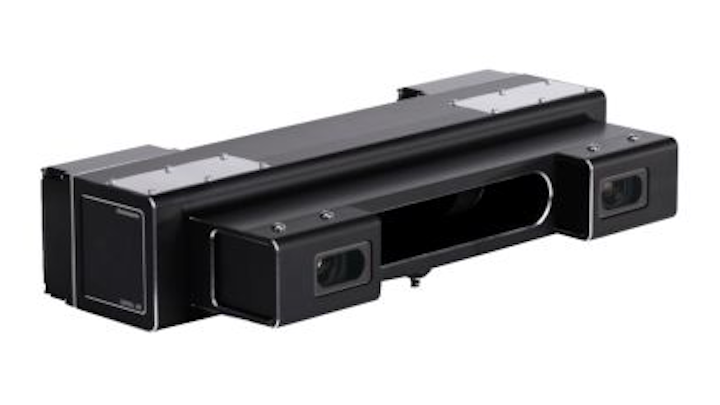

3D machine vision camera from Chromasens targets automotive inspection applications
New to the line of 3DPIXA 3D line scan cameras from Chromasens is the 3DPIXA dual 200 µm HR, which offers a 55 in. field of view for inspection applications such as automotive manufacturing and food processing.
New to the line of 3DPIXA3D line scan cameras from Chromasens is the 3DPIXA dual 200 µm HR, which offers a 55 in. field of view for inspection applications such as automotive manufacturing and food processing. The 3D machine vision camera features a 7296-pixel RGB trilinear CCD line sensor with a 10 µm pixel size that offers an optical resolution of 200 µm/pixel.
Additionally, the IP50-rated camera offers a height resolution up to 60 µm (400 mm), a free working distance of 1646.3 mm, a maximum speed of 4240 mm/s, and throughput up to 6.8 Gbit/s or 850 MB/s. Support for libraries from HALCON (MVTec), MIL (Matrox), LabVIEW (National Instruments), and Coake (SAC), along with Chromasens' own 3D-API, making it possible for programmers to design and perform 3D image processing applications, according to the company.
To Learn More:
Headquarters: Konstanz, Germany
Product: 3DPIXA dual 200 µm HR 3D line scan camera
Key Features: Tri-linear CCD line scan image sensor (RGB, 7296 pixel), optical resolution of 200 µm/pixel, field of view of 1400mm (55in.)
