New SWIR cameras from Allied Vision to be highlighted at chii2018

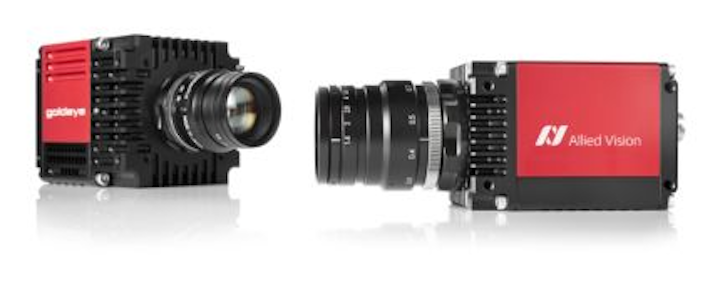

At the Conference on Hyperspectral Imaging in Industry 2018 from June 6-7, Allied Vision will showcase the two latest additions to its Goldeye family of SWIR cameras, the Goldeye G/CL-033 TECless and Goldeye G/CL-008 Cool TEC1.

Content Dam Vsd En Articles 2018 05 New Swir Cameras From Allied Vision To Be Highlighted At Chii2018 Leftcolumn Article Headerimage File

At the Conference on Hyperspectral Imaging in Industry 2018 from June 6-7, Allied Vision will showcase the two latest additions to its Goldeye family of SWIR cameras, the Goldeye G/CL-033 TECless and Goldeye G/CL-008 Cool TEC1.

The Goldeye G/CL-033 TECless features a 640 x 512 InGaAs focal plane array with a 15 µm pixel size that is sensitive in the short wave infrared spectrum ranging from 900 nm to 1,700 nm and achieves a frame rate of up to 301 fps. The single-stage thermo-electric cooled (TEC1) Goldeye G/CL-008 Cool TEC1 features a 320 x 256 InGaAs focal plane array with a 30 µm pixel size that is also sensitive in the short wave infrared spectrum ranging from 900 nm to 1,700 nm while reaching a frame rate of 344 fps.

Both cameras available with either a Camera Link or a GigE Vision interface and target industrial applications beyond the visible spectrum.

chii2018 booth number: 21

To Learn More:

Contact:Allied Vision
Headquarters: Stadtroda, Germany
Product:
Goldeye G/CL-033 TECless and Goldeye G/CL-008 Cool TEC1 SWIR cameras.
Key Features: 640 x 512/320 x 256 InGaAs focal plane array, sensitive in the short wave infrared spectrum ranging from 900 nm to 1,700 nm, GigE Vision or Camera Link interface.

What Allied Vision says:
View more information on the Goldeye G-033 TECless.
View more information on the Goldeye G-008 Cool TEC1.
