Teledyne DALSA debuts 8k CMOS linescan camera

Teledyne DALSA's Piranha4 8k color CMOS linescan camera features a 7 x 7-µm pixel size and high signal-to-noise ratio.

Teledyne DALSA debuts 8k CMOS linescan camera
Teledyne DALSA debuts 8k CMOS linescan camera

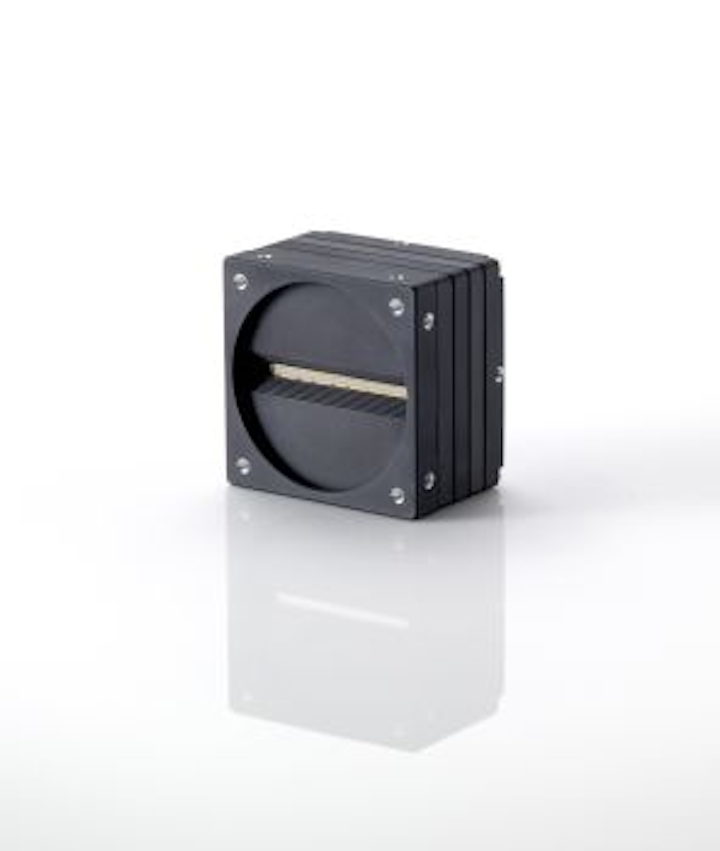

The Piranha4 8k color CMOS linescan camera features a 7 x 7-µm pixel size and high signal-to-noise ratio to support high-speed, automated optical inspection for products such as flat-panel displays, electronics, printed material, solar cells, film, and for large-format web inspection applications. Line rates reach up to 50 kHz at full resolution. The camera offers low read noise and high full-well capacity. Programmable features include exposure control, gain setting, flat field correction, white balance, and color correction. Algorithms allow defocusing capability in flat field correction and white balancing without adjusting the optical lens. A GenICam-compliant interface simplifies setup, control, and integration.
Teledyne DALSA
Waterloo, ON, Canada

-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---
NEW PRODUCT PRESS RELEASE

Teledyne DALSA Announces Faster, Higher Resolution Piranha4 8k Color CMOS Line Scan Camera

Ideal for high throughput machine vision inspection applications

Teledyne DALSA, a Teledyne Technologies company and a global leader in machine vision technology, continued its advanced CMOS sensor deployment with the launch of the new Piranha4 8k Color CMOS line scan camera with 8k resolution and a 7 µm x 7 µm pixel size for optimized optical design. The Piranha4 series combines advancements in Teledyne DALSA's CMOS image sensor technology with outstanding
signal-to-noise ratio for high speed inspection. The color version of this camera is ideal for automatic optical inspection of flat panel displays, electronics, printed material, solar cells, film, and large format web inspection.

"With line rates up to 50 kHz at full resolution, the Piranha4 8k Color camera inspects with unrivalled precision, speed, and responsivity," said Xing-Fei He, Senior Product Manager at Teledyne DALSA. "Our unique sensor design minimizes spectral and spatial crosstalk delivering the industry's best image quality in high performance color imaging."

The Piranha4 Color is based on Teledyne DALSA's unique CMOS bilinear line scan technology with on-chip CDS and on-chip ADC. It offers low read noise and high full well capacity, resulting in a better dynamic range for demanding applications. Programmability features of the P4 8k Color camera include exposure control, gain setting, flat field correction, white balance, and color correction. Special algorithms allow defocusing capability in flat field correction and white balancing without the need of adjusting the optical lens. In addition, an advanced GenICam™ compliant interface makes the camera easier to setup, control, and integrate.

Product Details and Availability
The Piranha4 line scan series includes 1k, 2k, 4k, and 8k resolutions with various pixel sizes based on CMOS dual line scan technology. For more information on product specifications, visit the Piranha4 product page. Contact your regional sales representative for more information on planned Piranha4 model release dates. For a full resolution image of the Piranha4 8k camera, visit Teledyne DALSA's online media kit.

SOURCE: Teledyne DALSA
