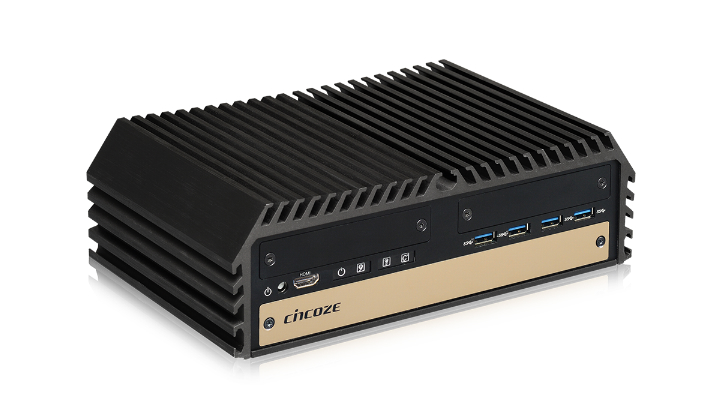

Based on the Intel C246 chipset with 8th gen Intel Xeon/Core processors, the DX-1100 embedded computer has support for up to 6 processing cores. Ready-to-use modules include two powered serial ports, 16 isolated digital I/O, 4x Gigabit Ethernet M12/RJ45 LAN, Power over Ethernet, and power ignition sensing function.
The system also features three full-size mini-PCIe sockets, and an M.2 E key type 2230 socket that supports Intel CNVi technology, for WiFi and Bluetooth functions.
The DX-1100 has an operating temperature of -40° to 70° C, a power input range of 9~48 VDC, 5/50 Grms vibration and shock tolerance, and passes CE/FCC, EN50155/EN50121-3-2, EN 60950-1, and E-mark certifications.
GET PRICING
To Learn More:
Contact: Cincoze
Headquarters: New Taipei City, Taiwan
Product: DX-1100 workstation
Key Features: 2x powered serial ports, 16x isolated digital I/O, 4x Gigabit Ethernet M12/RJ45 LAN, Power over Ethernet.
What Cincoze says: View more information on the DX-1100 workstation.
