Bosch Rexroth IndraLogic PLC provides multiple machine control functions in one environment

Aug. 19, 2011

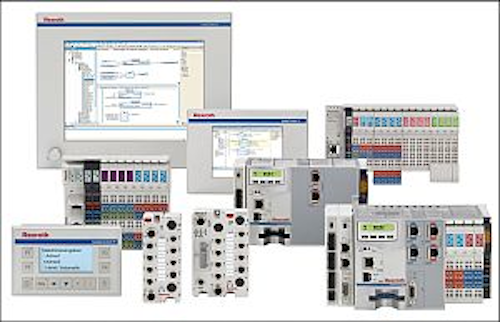

Bosch Rexroth's IndraLogic XLC programmable logical controller (PLC) family enables scalable, controller-based and embedded PC solutions in conjunction with the IndraControl device platform.

The IndraLogic XLC programmable logical controller (PLC) family enables scalable, controller-based and embedded PC solutions in conjunction with the IndraControl device platform for automation systems. Device communications take place via real-time Ethernet SERCOS III. The IndraLogic 2G PLC kernel offers editor tools, object orientation as an extension to IEC 61131-3, function libraries, and fast compilers for generation of machine codes.
Bosch Rexroth
Hoffman Estates, IL, USA

-- Posted by Vision Systems Design

View More New Products

---
NEW PRODUCT PRESS RELEASE

Faster Automation Thanks to New Functions

New PLC family: IndraLogic XLC from Rexroth

With IndraLogic XLC (eXtended Logic Control), Rexroth presents a new family of PLC controllers whose capabilities go far beyond the familiar PLC standard functions. Users can leverage a wide range of new functions that achieve modular software projects quicker than before. All planning, configuration, programming and diagnostic functions are standardized in one single engineering environment. Flexible motion control functions are already integrated. IndraLogic XLC can be connected into different communication networks thanks to real-time communication via SERCOS III and other common communication interfaces.

(Hoffman Estates, IL) Rexroth’s IndraLogic XLC PLC family enables scalable, controller-based and embedded PC solutions in conjunction with the company’s latest IndraControl device platform. Industrial PC-based hardware variants will round off the device portfolio in 2011.

Rexroth advanced the PLC programming using state-of-the-art PLC kernel, IndraLogic 2G, integrated homogeneously into the company’s IndraWorks software tool and the multitasking runtime system. This allows users to take advantage of many new functions for creating modular software projects in an end-to-end overall system in less time than before. Functions include convenient editor tools, object orientation as an extension to IEC 61131-3, and comprehensive function libraries as well as fast compilers for efficient generation of machine codes. The modular GATcompact (Generic Application Template) project template simplifies the process of designing new machines with enhanced software quality while reducing effort considerably.

End-to-end communication between the controller and decentralized system peripherals, such as inputs and outputs or drives, takes place via real-time Ethernet SERCOS III. Fast PLC cycles to 250 µs enable optimum response times for handling time-critical process signals. IndraLogic XLC controllers come with versatile motion control functions, integrated into the run-time systems, to enhance the previous IndraLogic systems.

With its motion control functionality, the XLC handles machine applications ranging from simple point-to-point motion to the synchronization of multiple axes that use Rexroth’s FlexProfile to integrate complex motion sequences. The graphical profile editor in the Rexroth IndraWorks software tool offers numerous offline and online functions for this purpose. Master and slave interfaces for PROFINET RT, PROFIBUS and EtherNet/IP are also available, in addition to SERCOS III, for integrating into a wide range of communication networks.

SOURCE: Bosch Rexroth
