Aerotech stage provides 5 mm of travel for automation applications

Aerotech's AVS1000 series positioning stages offer 5-nm resolution and accuracy to ±1 µm for large loads up to 135 kg.

May 26th, 2011

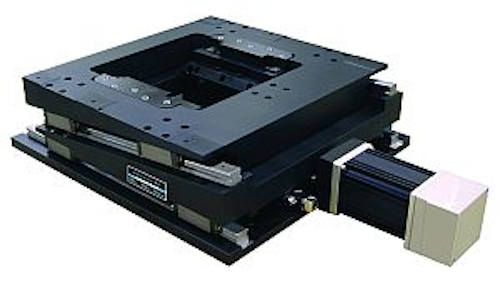

vsdprodaerotech052611
vsdprodaerotech052611

The AVS1000 series positioning stages offer 5-nm resolution and accuracy to ±1 µm for large loads up to 135 kg. It provides 5 mm of travel, with custom designs available to enable automation. Cleanroom and electrostatic discharge protection are optional. Sealed linear-motion guide bearings with integral wipers provide payload capability, long life, and smooth motion.
Aerotech
Pittsburgh, PA, USA

-- Posted by Vision Systems Design

View More New Products

---

NEW PRODUCT PRESS RELEASE

AVS1000 Lift Stage with Large Aperture offers Precise Elevation of Large and Heavy Loads

- High-load lift stage with aperture
- Submicron closed-loop positioning
- Excellent pitch and yaw characteristics over full travel
- 5 mm travel; custom designs available for alternate travels
- Optional cleanroom and ESD protection
- Precision-ground ball screw and moving-wedge design for high performance

Aerotech’s AVS1000 series stages offer a solution for applications that require positioning of large or heavy loads over very small incremental movements in elevation above a horizontal plane. The low profile and precise motion capability make these stages suitablefor use in semiconductor manufacturing and inspection, automated tool alignment, machine vision inspection systems, laser machining applications, and more.

Quality Design Provides Superior Performance
The AVS1000 series provides precise elevation of a load in a vertical plane using a moving-wedge design. The precision machined wedge block converts horizontal movement from a precision-ground ball screw into vertical elevation of the AVS1000 series tabletop. Excellent pitch and yaw characteristics over the length of travel minimize the impact of angular errors. AVS1000 performance includes exceptional resolution (5 nm) and accuracy (±1 µm), with the ability to apply this performance to large loads up to 135 kg.

Sealed linear motion guide bearings with integral wipers are incorporated to provide high payload capability, long life, and smooth, precision motion. Stable and parallel vertical motion with no rocking or horizontal deviation of the platform is assured. Careful design of the wedge angle and bearing system allows the AVS1000 series to achieve submicron resolution and still maintain a compact profile.

A Better Approach to Vertical Motion
The vertical lift approach offers an alternative to traditional Z-plane oriented stages. Not only do the AVS1000 series stages offer a lower profile, but the load can also be conveniently accessed from any side due to the large aperture. And by centering the payload over the bearings, there are no cantilevering effects.

Motor and Drives
The AVS1000 series includes Aerotech's high performance NEMA 34 frame-size BMS series brushless, slotless servomotor. The slotless motor has zero cogging and therefore is optimized for applications requiring very smooth motion.

Aerotech manufactures a wide range of matching drives and controls to provide a fully integrated and optimized motion solution.

For further information, please contact Steve McLane at 412-967-6854 (direct), or via e-mail at smclane@aerotech.com.
