Bluewrist in-line system scans for 3-D inspection and measurement on plant floor

FlexiScan3D, available from Bluewrist, is an in-line scanning-based dimensional inspection system for industrial machine vision.

Bluewrist in-line system scans for 3-D inspection and measurement on plant floor
Bluewrist in-line system scans for 3-D inspection and measurement on plant floor

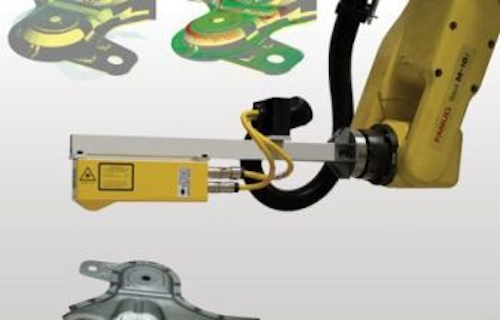

FlexiScan3D is an in-line scanning-based dimensional inspection system for industrial machine vision. Using a 3-D scanner mounted onto a robot end-effector or onto a linear slide, the 3-D imaging system measures dimensional quality and detects surface defects of parts and assemblies during production. The system collects point-cloud data, automatically aligns them to the part CAD files, and allows extracting geometric features such as holes, slots, studs, surfaces, and others. The extracted are compared to user-defined tolerances and saved into the system's database for reporting, providing plant-wide production data access.
Bluewrist Inc.
Markham, Ontario, Canada


-- Posted by Vision Systems Design

View More Vision+Automation Products

Locate a vendor or system integrator in our Online Buyer's Guide

---

NEW PRODUCT PRESS RELEASE

Innovative 3D Scanning System for Quality Control

FlexiScan3D is an in-line scanning-based dimensional inspection system. Using a 3D scanner mounted onto a robot end-effector or onto a linear slide, FlexiScan3D is capable of measuring the dimensional quality and detecting surface defects of various parts and assemblies during production. FlexiScan3D collects point cloud data, automatically aligns them to the part CAD files and allows extracting geometric features such as holes, slots, studs, surfaces, trim and hem edges, etc. The extracted data is compared to user-defined tolerances and then saved into the system’s database for reporting purposes. FlexiScan3D reduces process variation and improves quality, while providing plant-wide production data access for built quality monitoring and report generation.
Bluewrist Inc.
Markham, Ontario, Canada

Additional product information page:

BENEFITS & FEATURES

- Includes comXtream process engine, ScanXtream point cloud processing software and SPCWorks data mangement and reporting software
- Complete robot calibration solution using KinOptim option
- Reliable and capable of meeting production speed requirements
- Reduces process variation and improves quality
- Plant-wide production data access for built quality monitoring and report generation
- Fully integrated with the line's PLC for alarms and results
- Automatically extracts dimensional features such as holes, slots, surface points, studs, trim and hem edges, etc.

ScanXtream

User-friendly 3D point cloud processing and viewing software that is provided as a stand-alone application or bundled with comXtream .

Supports:
- CAD files (IGES, STL, VRML, etc.)
- Data streamed from comXtream
- 3D point clouds from 3rd party software
- 6 D.O.F. best-fit alignment of point clouds of the part to the CAD model
- Exports point cloud data for 3rd party software
- Can be used by production, engineer, or quality team members

SOURCE: Bluewrist
