Scan and positioning designed for 2D scanning applications

Piezosystem Jena’s Scan XY40 actuating stage was designed mainly to fulfill requirements of 2D scanning applications.

May 27th, 2013

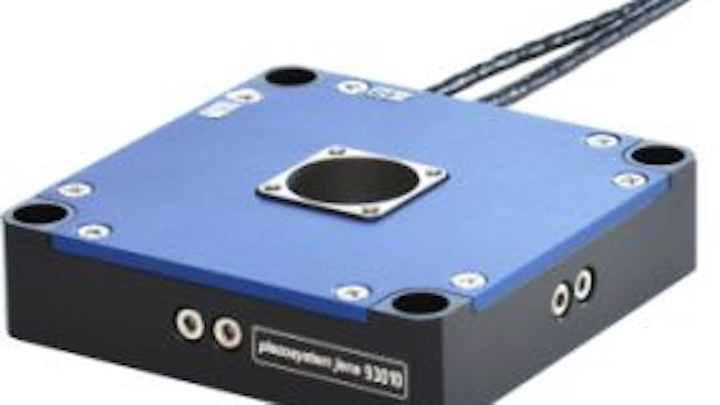

Content Dam Vsd Online Articles 2013 05 Nanoscanxy40 31 Frei   Copy

Piezosystem Jena’s Scan XY40 actuating stage was designed mainly to fulfill requirements of 2D scanning applications. It offers a travel range of 40 microns per axis and a resonant frequency of more than 800 Hz per axis. Each axis on the Scan XY40 is positioned orthogonally to each other and can be controlled separately. Aside from 2D scanning, applications that the Scan XY40 is suitable for include mirror and lens positioning, beam alignment, semiconductors, and micro manipulation.

To learn more:

Contact:
Piezosystem Jena
Headquarters
: Jena, Germany
Product:
Scan XY40
Key Features:
Travel range of 40 microns per axis, resonant frequency of more than 800 Hz per axis, 2D motion in XY, motion without mechanical play.

What Piezosystem Jena says:
View more information on the Scan XY40.
