3-D vision system helps cut poultry into pieces

Researchers at the Georgia Tech Research Institute (GTRI; Atlanta, Georgia, USA) have developed a prototype system that uses imaging technology and a robotic cutting arm to automatically debone chicken and other poultry products.

3-D vision system helps cut birds into pieces
3-D vision system helps cut birds into pieces

Researchers at the Georgia Tech Research Institute (GTRI; Atlanta, Georgia, USA) have developed a prototype system that uses imaging technology and a robotic cutting arm to automatically debone chicken and other poultry products.

The intelligent cutting and deboning system employs a 3-D vision system that determines where to cut a particular bird. The device automatically performs precision cuts that optimize yield, while also greatly reducing the risk of bone fragments in the finished product.

"Each bird is unique in its size and shape," says Gary McMurray, chief of GTRI's Food Processing Technology Division. "So we have developed the sensing and actuation needed to allow an automated deboning system to adapt to the individual bird, as opposed to forcing the bird to conform to the machine."

In the intelligent cutting and deboning system, a bird is positioned in front of the vision system prior to making a cut, explained GTRI research engineer Michael Matthews. The vision system works by making 3-D measurements of various location points on the outside of the bird. Then, using these points as inputs, custom algorithms define a proper cut by estimating the positions of internal structures such as bones and ligaments.

"Our research shows that our external measurements correlate very well to the internal structure of the birds, and therefore will transition to ideal cutting paths," Matthews says. "In our prototype device, everything is registered to calibrated reference frames, allowing us to handle all cut geometries and to precisely align the bird and the cutting robot. Being able to test all possible cut geometries should enable us to design a smaller and more simplified final system."

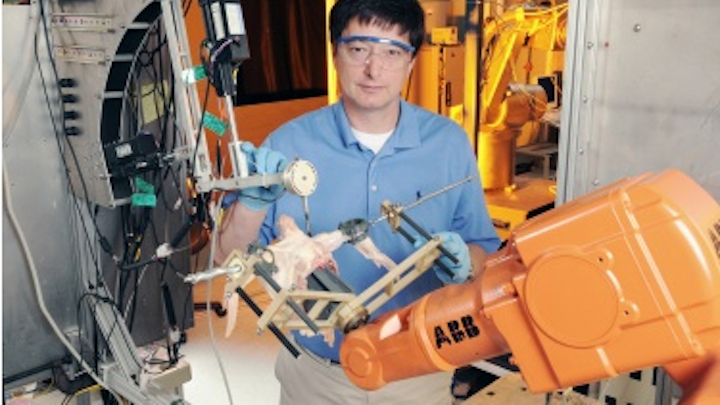

The prototype uses a fixed two-degree-of-freedom cutting robot for making simple planar cuts. The bird is mounted on a six-degree-of-freedom robot arm that allows alignment of the bird and cutting robot to any desired position. The robot arm places the bird under the vision system, and then it moves the bird with respect to the cutting robot.

The system employs a force-feedback algorithm that can detect the transition from meat to bone. The algorithm makes use of a force sensor affixed to the knife handle. During a cutting operation, the sensor enables the robot to detect imminent contact with a bone. Then, instead of cutting straight through the bone, the system directs the cutting tool to take an appropriate detour around the bone.

Fine tuning is needed to adjust the force thresholds, to be able to tell the difference between meat, tendon, ligaments and bone, each of which have different material properties.

McMurray said he expects the intelligent deboning system to match or exceed the efficiency of the manual process.

Testing of the deboning prototype system, including cutting experiments, has confirmed the system’s ability to recognize bone during a cut and to avoid bone chips, demonstrating the validity of GTRI’s approach.

-- by Dave Wilson, Senior Editor, Vision Systems Design
