Researchers at theUS Geological Survey (Reston, VA, USA) have developed an automated digital imaging system for environmental monitoring applications.
The system, which is inexpensive and highly robust, has been designed to be placed in remote locations without wireless connectivity.
The imaging system was built from readily available, low-cost components, and powered entirely by solar energy. It requires no remote communication, minimal maintenance, and only occasional visits for data retrieval.

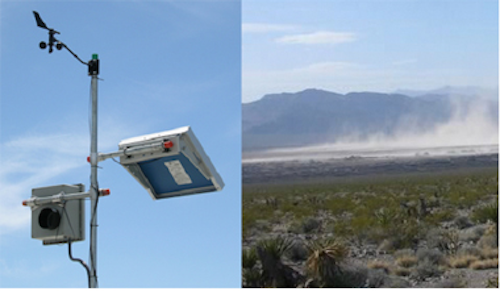

There are four basic subsystems that make up the imaging system: a data logger, an imager, sensors, and a power subsystem. The data logger maintains the date and time and collects, records, and analyzes data from the environmental sensors as well as triggering the stand-alone consumer-grade digital camera.
The environmental sensors include typical meteorological instruments for measuring wind, precipitation, temperature, humidity, solar radiation, leaf-wetness and soil-moisture. The power subsystem consists of a moderate-capacity sealed lead acid battery, solar panel, and customized circuitry to regulate and control power for the camera.
One of the goals of the developers of the system was that they wanted it to be easily replicated by others who may have minimal technical or electronic experience.
As such, they have produced an extensive report that details the design of the system. Written by Rian Bogle, Miguel Velasco, and John Vogel, the report, which is entitled "An automated digital imaging system for environmental monitoring applications", can be found here.
