CBC's 5-Mpixel lens features 7x macro zoom

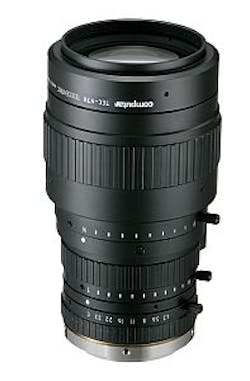

Computar has released the TEC-V7X, a 5 megapixel 7x macro zoom telecentric lens.

Content Dam Etc Medialib New Lib Vision Systems Design Online Articles 2010 09 58049

PRESS RELEASE

Computar (Commack, NY, USA) previewed the TEC-V7X, a 5 megapixel 7x macro zoom telecentric lens at the Vision Show in Boston.

This high performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range. It provides excellent brightness throughout the zoom range, maintaining 70% illumination at both center and corners.

The TEC-V7X’s unique features provide the versatility to meet a wide range of industrial applications. The working distance is adjustable from 182-577mm and a F4.3-32C manual iris allows precise depth of field and contrast adjustments. This lens is suitable for cameras up to 5 megapixels with 1/1.1” sensors.

For more product information, go to www.computarganz.com or call 800 422-6707 NY or 800 888-0131.

About CBC
For over 30 years, CBC (AMERICA) Corp. has been a leader in the manufacture of intelligent analog and IP video surveillance systems. CBC’s expansive product line and world-class customer support has made us a security system provider choice of businesses worldwide. Computar lenses have long been recognized as the leader in the surveillance industry; Ganz brand has assumed a parallel position in the manufacture of a comprehensive line of intelligent analog, and IP video surveillance solutions from Megapixel IP Cameras, Hybrid NVRs, DVRs and associated accessories.
