Videology's rugged ultra-mini board camera has brilliant color with no noise

Videology Imaging Solutions introduces a new ultra-small 14mm x 14mm CMOS VGA color camera series for applications in environmentally demanding OEM markets.

Content Dam Etc Medialib Platform 7 Vision Systems Design Articles Online Exclusive Articles 2010 Global 40372

PRESS RELEASE

Videology Imaging Solutions (Greenville, RI, USA) introduces a new ultra-small 14mm x 14mm CMOS VGA color camera series for applications in environmentally demanding OEM markets. The CMOS 1/4 inch VGA imagers are ruggedized, industrial-grade BGA packages.

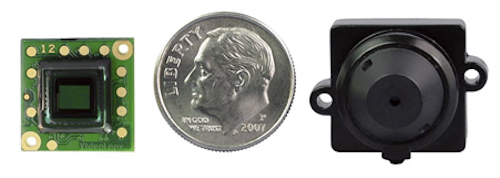

Videology's 20B4X mini-board cameras are well-suited for pipe inspection, borescope and surveillance applications. The camera’s tiny 14mm x 14mm size allows it to fit into small, covert housings like outlet covers or doorbells. The camera is equally suited for installation inside or outside a vehicle, inside an exposed exterior surveillance dome, or integrated into any equipment which must regularly tolerate high temperatures. The boards are specified for temperature ranges of -40°C/-40°F to 70°C/158°F.

The 20B45's color fidelity rivals that of today's best CCDs, and at .025 lux (50 IRE) the image sensor has twice the sensitivity of a Sony EX-View, with no noise.

Its ability to withstand vibration makes it the camera of choice for automotive and test equipment applications. The low power consumption (<150mA) makes the camera attractive for battery operated applications.

A twisted pair balanced video output option makes the camera a cost effective solution using Cat 5 cable, eliminating the expense of coax cables. The 20B45 comes standard, NTSC or PAL, with true two-field analog composite video output.

The camera is computer controllable via I2C for OEMs looking to fine-tune an image for a specific application.

Mini housed versions with multiple lens options are also available. Custom configurations are possible for qualified, volume OEM customers. All OEM and press inquiries are welcome. Visit www.videologyinc.com.

Videology Imaging Solutions is an ISO 9001 registered video camera manufacturer serving industrial, machine vision, biometric, security, IP and specialty OEM markets worldwide.

Videology Imaging Solutions, Inc.
Greenville, RI 02828
401-949-5332
sales@videologyinc.com
