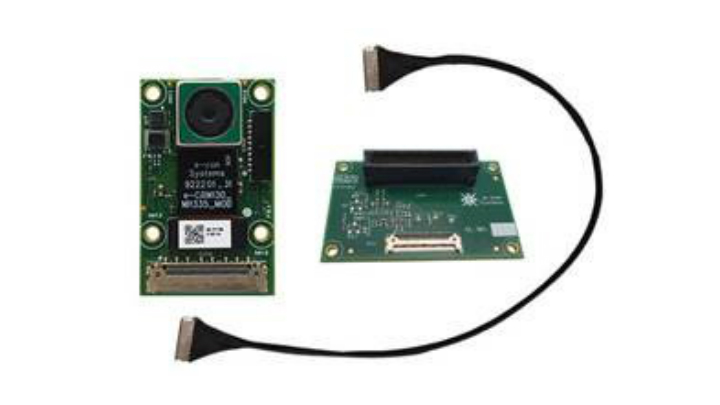

The 4-lane MIPI CSI-2 e-CAM130_iMX8M camera from e-con Systems, a 13 MPixel autofocus camera built with the AR1335 CMOS image sensor from ON Semiconductor, is designed for the i.MX8 System on Modules from Variscite, with drivers in development to support other products.
The iMX8 camera features a 1.1µm pixel and delivers 120 fps at VGA resolution, 80 fps at 720p, 60 fps at 1080p, 15 fps at 3840 x 2160, and 10 fps at 4192 x 3120. The board is 47 mm x 30 mm in size, draws between 0.72 and 0.89 W, and has an operating temperature of -30° to 70° C.
To Learn More:
Contact: e-con Systems
Headquarters: Chennai, Tamil Nadu, India
Product: e-CAM130_iMX8M camera
Key Features: AR1335 image sensor, 13 MPixel, 1.1µm pixel, variable output resolution.
What e-con systems says: View more information on the e-CAM130_iMX8M.
