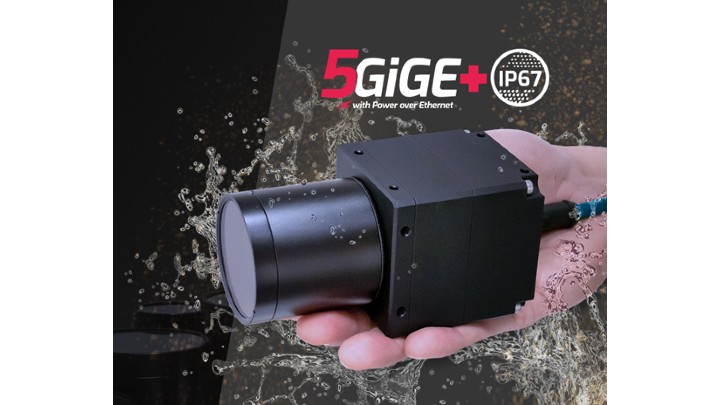

The Atlas 5GigE IP67-rated cameras feature a range of Sony Pregius global shutter CMOS image sensors over a 5GBASE-T interface. These include the 2.8-MPixel Sony IMX421 sensor with a pixel size of 4.5 µm running at a frame rate of 173 fps, the 8.9-MPixel IMX255 sensor at 58.5 fps, and the 12.3-MPixel IMX253 at 42.5 fps offering a 3.45 µm pixel size. The Atlas Factory Tough™ camera line is designed for industrial applications requiring high bandwidth and high resolution in a robust IP67-rated housing. The line features Active Sensor Alignment, 60 × 60 mm size, M12 Ethernet and M8 general purpose I/O connectors, and an ambient temperature range of –20°C to +55°C. The Atlas IP67 models feature C-mount lenses.
To Learn More:
Contact: LUCID Vision Labs
Headquarters: Richmond, BC, Canada
Product: Atlas 5GigE IP67-rated cameras
Key Features: Sony Pregius image sensors; IP67 housing; M12 Ethernet and M8 general purpose I/O connectors
What LUCID Vision Labs says:
View more information on the Atlas 5GigE IP67-rated cameras.
