Vision Research Phantom v2511 video camera achieves 25,600 fps frame rate

The newly released Phantom v2511 video camera from Vision Research can capture up to 25,600 fps at full 1 MPixel resolution and features two HS-SDI ports and a 10GB Ethernet connection, along with a standard 1GB Ethernet connection.

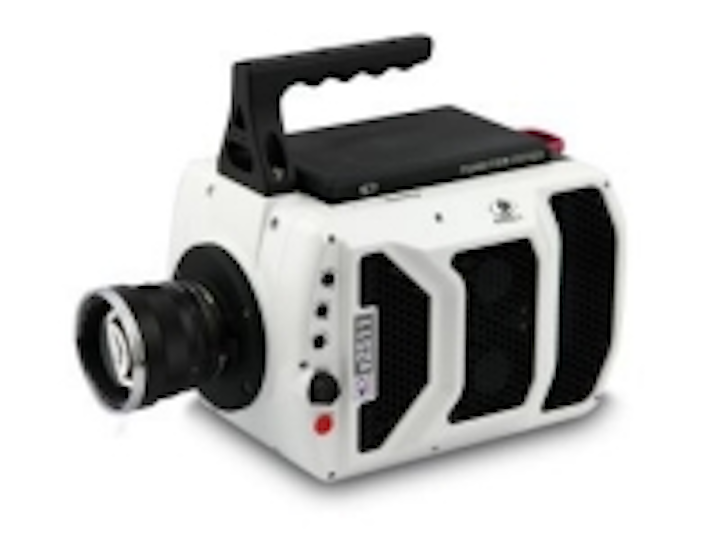

Content Dam Vsd En Articles 2014 07 Vision Research Phantom V2511 Video Camera Achieves 25 600 Fps Frame Rate Leftcolumn Article Thumbnailimage File

The newly released Phantom v2511 video camera from Vision Research can capture up to 25,600 fps at full 1 MPixel resolution and features two HS-SDI ports and a 10GB Ethernet connection, along with a standard 1GB Ethernet connection. The camera features a 1 MPixel CMOS image sensor with a 28 µm x 28 µm pixel size, 12-bit depth, and Vision Research’s CineMag interface which allows the user to save a high-speed shot from camera memory to non-volatile storage. In addition, the camera features an image-based auto-trigger that allows the camera to be triggered from the motion of live images, making infrequent or unpredictable events easier to record on camera. The Phantom v2511 camera also comes with camera control software, a software development kit, a remote control unit, a Nikon F-Mount lens mount, and a number of video processing capabilities.

To Learn More:

Contact:Vision Research
Headquarters
: Wayne, NJ, USA
Product:
Phantom v2511 camera
Key Features:
1 MPixel CMOS image sensor, 28 µm x 28 µm pixel size, 12-bit depth, CineMag interface, 25,600 fps at 1 MPixel resolution.

What Vision Research says:
View more information on the Phantom v2511 camera.
