• Teledyne DALSA's Piranha NIR camera operates at 34.3-kHz line rate

    Teledyne DALSA's Piranha HS NIR 8k camera images in the near-infrared using time delay and integration (TDI) technology for low-light applications.
    Jan. 31, 2012
    3 min read

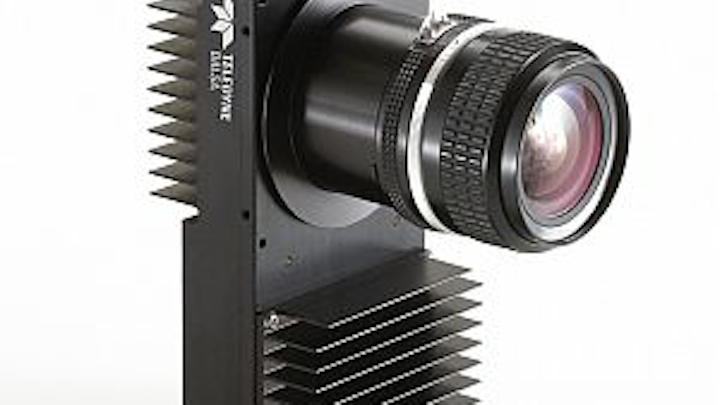

    The Piranha HS NIR 8k camera images in the near-infrared using time delay and integration (TDI) technology for low-light applications such as solar cell inspection, PCB/electronics inspection, large web applications, and food and drug inspection. Improved sensitivity in NIR and 256 TDI stages provide enhanced electroluminescence at 1000-nm wavelengths of light. The camera delivers images of 8192 × 256 TDI pixels, with 320-Mpixel/s throughput and 34.3-kHz line rate via Camera Link interface.
    Teledyne DALSA
    Waterloo, ON, Canada

    -- Posted by Vision Systems Design

    View More New Products

    ---

    NEW PRODUCT PRESS RELEASE

    Teledyne DALSA Presents its First High-Sensitivity Near-Infrared Camera

    The Piranha HS NIR Line Scan Camera has Enhanced Quantum Efficiency in Near-infrared and features Time Delay and Integration Technology

    Teledyne DALSA is pleased to announce the Piranha HS NIR 8k camera. Featuring improved sensitivity in near-infrared (NIR) wavelengths, the Piranha HS NIR benefits from time delay and integration (TDI) technology. The camera is designed to meet the requirements of low light applications such as solar cell inspection, PCB / electronics inspection, large web applications, and food and drug inspection.

    "Improved sensitivity in the near infrared region is critical to the success of equipment in a number of applications," said Xing-Fei He, Senior Product Manager at Teledyne DALSA. "The Piranha HS NIR's TDI technology enables multiple exposures for orders of magnitude increases in sensitivity while maintaining low noise performance; this is ideal for high speed and low-noise applications."

    The Piranha HS NIR extends Teledyne DALSA's industry leading High Sensitivity (HS) product line and provides a cost-effective solution for imaging in near-infrared wavelengths from 700 to 1050 nanometers. It operates using selectable TDI stages, up to a maximum of 256, and has an area mode of operation for ease of alignment. The camera can be programmed with up to four user sets of coefficients and can utilize mirroring control, forward/reverse control, and flat field correction.

    Key Features
    Enhanced sensitivity in NIR and 256 TDI stages provide excellent electroluminescence at 1000 nm wavelengths of light
    High resolution images of 8192 x 256 TDI pixels
    320 Mpix/s throughput and 34.3 kHz line rate allow faster inspection times and higher productivity
    Bidirectional operation greatly reduces cost by simplifying inspection process
    100x anti-blooming
    Camera Link interface
    Product Details and Availability

    The Piranha HS NIR 8k will be available in Q1 of 2012. For more information on product specifications, please visit the Piranha HS NIR product page. Contact your regional sales representative for more information on planned Piranha HS NIR model release dates. For a full resolution image of a Teledyne DALSA Piranha HS NIR camera, please visit Teledyne DALSA's online media kit.

    Sales Contacts
    [email protected]
    [email protected]
    [email protected]

    SOURCE: Teledyne DALSA
