• Metaphase pattern projector features intense LED line output

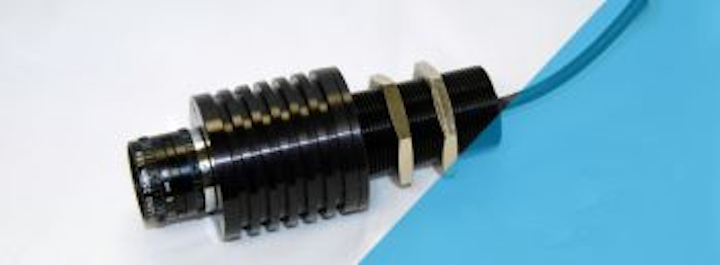

    The MetaBright LED pattern projector from Metaphase Technologies employs a proprietary optical system design combined with C-mount, 2/3-in. format imaging lenses to project intense patterns for structured-light applications.

    Oct. 29, 2012
    2 min read

    The MetaBright LEDpattern projector employs a proprietary optical system design combined with C-mount, 2/3-in. format imaging lenses to project intense patterns for structured-light applications. Intensity can be controlled within a range of 0~10 V. The device is able to project patterns including cross-hair, stripes, grid, edge, and line, with less than 1 micron edge sharpness. Custom pattern options are available upon request. The projector has a built-in driver and requires 24 VDC for operation, with strobe, DC (continuous), and external controlled versions available.
    Metaphase Technologies
    Bensalem, PA, USA

    -- Posted byVision Systems Design

    View More Vision+Automation Products

    Locate a vendor or system integrator in our Online Buyer's Guide

    ---

    NEW PRODUCT PRESS RELEASE

    Product Spotlight: MetaBright LED Pattern Projector

    Now Featuring the Brightest LED Based Pattern Projector: Metaphase Technologies is proud to feature our New MetaBright LED Pattern Projector, the MB-LPP. By utilizing proprietary optical array system, the MB-LPP provides the most intense projected line output. This LED Pattern projector illuminates a variety of patterns at different working distances. Paired with a lens and pattern reticle, the LED pattern projector is ideal for structured light applications. The device intensity can be controlled with a 0 ~ 10V intensity control. Features: * High Intensity Output based on proprietary optical system design * Use with C-Mount, 2/3” format imaging lenses to project the patterns * Designed for Structured Light Applications * Project Patterns with <1 micron Edge Sharpness * Built in driver, no special control required, simply provide 24VDC * 0-10V intensity control * Versions available: Strobe, DC (Continuous) and use with external controller (ULC-2) * Patterns include: Cross-hair, Stripes, Grid, Edge & Line Ask about our available color options. Please contact your Metaphase representative for custom pattern options. Metaphase Technologies 3412 Progress Drive, Unit C Bensalem, PA 19020 215.639.8699 SOURCE: Metaphase Technologies
