Machine vision light from Smart Vision Lights modified to work at long distances

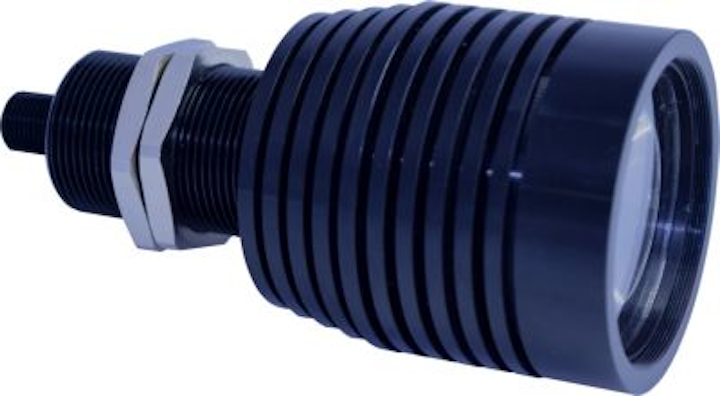

Modifying its SX30 Prox Spot Light, Smart Vision Lights has released the SX30 (N4) machine vision light, which is designed to work over long distances, thanks to a narrow beam of light.

Content Dam Vsd En Articles 2018 05 Machine Vision Light From Smart Vision Lights Modified To Work At Long Distances Leftcolumn Article Headerimage File

Modifying its SX30 Prox Spot Light, Smart Vision Lights has released the SX30 (N4) machine visionlight, which is designed to work over long distances, thanks to a narrow beam of light. The SX30 (N4) features a 4° lens, which allows for a long, tightly-focused beam of light, where a working distance of 2 m produces a lighting pattern of 200 mm. The light also features an integrated constant-current driver, which enables the light to operate continuously or in on/off input mode, with the option for PNP and NPN input. The ODSX30 (N4), is the strobe-only OverDrive version of the light and generates two-and-a-half times as much light as the SX30 (N4). Both lights feature a single 5W LED in a small 30 mm barrel sensor housing and are available in white, 470 nm blue, 505 nm cyan, 530 nm green, 625 nm red, and 850/940 nm IR.

Learn More:

Contact: Smart Vision Lights
Headquarters: Muskegon, MI, USA
Product: SX30 Prox Spot Light
Key Features: 4° lens (working distance of 2 m produces a lighting pattern of 200 mm), available in white, 470 nm blue, 505 nm cyan, 530 nm green, 625 nm red, and 850/940 nm IR.

What Smart Vision Lights says:
View more information on the machine vision light.
