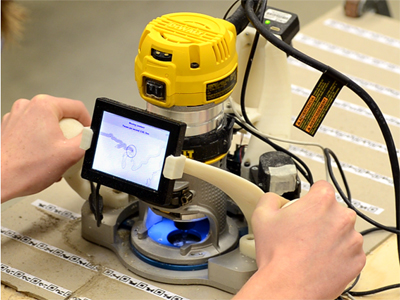

By marrying a vision system with an inexpensive actuation system, students at MIT (Cambridge, MA, USA) have developed a handheld cutting tool that can automatically adjust its position to compensate for any positioning errors caused by a user.
"You load the system up with a digital plan that you would like it to follow, and then you are only responsible for getting it to within a quarter-inch or so of that plan," says Alec Rivers, a PhD student in the Department of Electrical Engineering and Computer Science (EECS). "The system then adjusts the position of the cutting bit within the tool to keep it to the plan."
For the system to follow any given plan, it must first know exactly where it is on the material to be cut. For it to do so, the user first places marker tape containing a black and white pattern onto the material. Then, the system is moved over the material while an on-board camera films the surface and stitches together the video frames it captures into a 2-D map.
The design of an object to be cut is then loaded onto a computer which is registered onto the 2-D map of the material, after which the tool is lined up on the material.
To cut the material, the user only needs to move the tool in a rough approximation of the desired cutting path. The camera on the system tracks the location of the system, while a linear actuation system moves the position of the tool to correct for any deviation from the cutting path.
The system also helps the user to follow the cutting plan by displaying it on a display screen mounted on a frame on the tool.
The researchers presented their design in a paper at this month's Siggraph conference (Los Angeles, CA, USA). A copy of the paper can be found here.
