Vision Components releases OEM board camera with 16 bit color depth

Vision Components’ VCSBC6085 intelligent OEM board camera features a 16 bit color depth and a 2/3“ CCD image sensor, and is suitable for use in life sciences, food and beverage, and pharmaceutical applications.

Content Dam Vsd En Articles 2013 12 Vision Components Releases Oem Board Camera With 16 Bit Color Depth Leftcolumn Article Thumbnailimage File

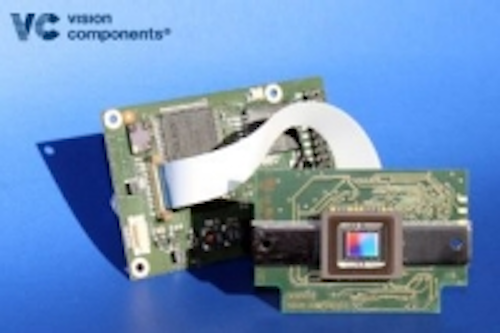

Vision Components’ VCSBC6085 intelligent OEM board camera features a 16 bit color depth and is able to distinguish between 65,536 shades of grey (with standard cameras only limited to 256 shades.) The 1,280 x 1,024 pixel camera features a Sony ICX285 2/3" CCD image sensor and a 16 bit A/D converter instead of a standard 10 bit model. In addition, the camera features an integrated 300 MHz DSP, 32 MB Flash, 128 MB DDR-RAM memory, and a 100 Mbit Ethernet interface. VCSBC6085 cameras are suitable for use in x-ray imaging, as well as life sciences, food and beverage, and pharmaceutical applications.

To Learn More:

Contact:Vision Components
Headquarters: Ettlingen, Germany
Product: VCSBC6085 OEM board camera
Key Features: 16 bit color depth, Sony ICX285 2/3” CCD image sensor, 16 bit A/D converter, 300 MHz DSP, 32 MB Flash, 128 MB DDR-RAM memory, 100 Mbit Ethernet interface.

What Vision Components says:
View more information on the VCSBC6085 camera.
