Laser-based cataract surgery system features multiple machine vision cameras

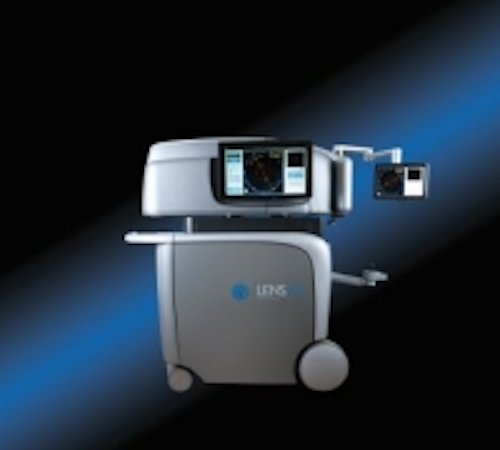

Built specifically for refractive cataract surgery, The LENSAR Laser System is a femtosecond laser device that collects biometric data and reconstructs a 3D model of the anterior segment of the eye using a proprietary augmented reality technology.

Jun 19th, 2014
Content Dam Vsd En Articles 2014 06 Laser Based Cataract Surgery System Feature Multiple Machine Vision Cameras Leftcolumn Article Thumbnailimage File

Built specifically for refractive cataract surgery, The LENSAR Laser System is a femtosecond laser device that collects biometric data and reconstructs a 3D model of the anterior segment of the eye using a proprietary augmented reality technology.

Within the LENSAR’s augmented reality 3D imaging, measurement, and guidance system is an Adimec QUARTZ Qs-4A60 camera. The 4 MPixel Qs-4A60 camera features a CMV4000 CMOSIS global shutter CMOS image sensor with a 5.5 µm x 5.5 µm pixel size. The camera achieves a frame rate of 60 fps and features a dynamic range of 60 to 90dB as well as Camera Link and CoaXPress interfaces. Within the augmented reality system of the LENSAR, the Qs-4A60 rotates and captures anterior segment images and biometry at two different angles at up to eight different positions around the optical axis for a total of 16 potential images.

Multiple scans identify the precise location of the relevant anatomical structures from the anterior cornea to the posterior capsule, and using optical ray-tracing and biometric data, the augmented reality system creates a 3D model of each patient’s eye prior to surgery, allowing for more precise laser delivery. The technology also facilitates precise surgical incisions and treatment for ultimate accuracy and outcomes, all in a single procedure room, according to the press release.

In addition, an Adimec A-1000 camera is also used in the LENSAR Laser System for alignment and overview purposes during surgery. The 1MPixel A-1000 camera features a 2/3” Interline CCD image sensor with a 7.4 µm x 7.4 µm pixel size. The camera achieves a frame rate of 50 fps and features a dynamic range of 62dB as well as a Camera Link interface.

View more information on the LENSAR Laser System. View other articles from our July 2 3D imaging e-newsletter.
