Point Grey announces Chameleon3 USB3 Vision camera line

Chameleon3 cameras are the latest generation of USB3 Vision cameras from Point Grey that can easily be converted to a board-level version.

Content Dam Vsd En Articles 2014 09 Point Grey Announces Chameleon3 Usb3 Vision Camera Line Leftcolumn Article Thumbnailimage File

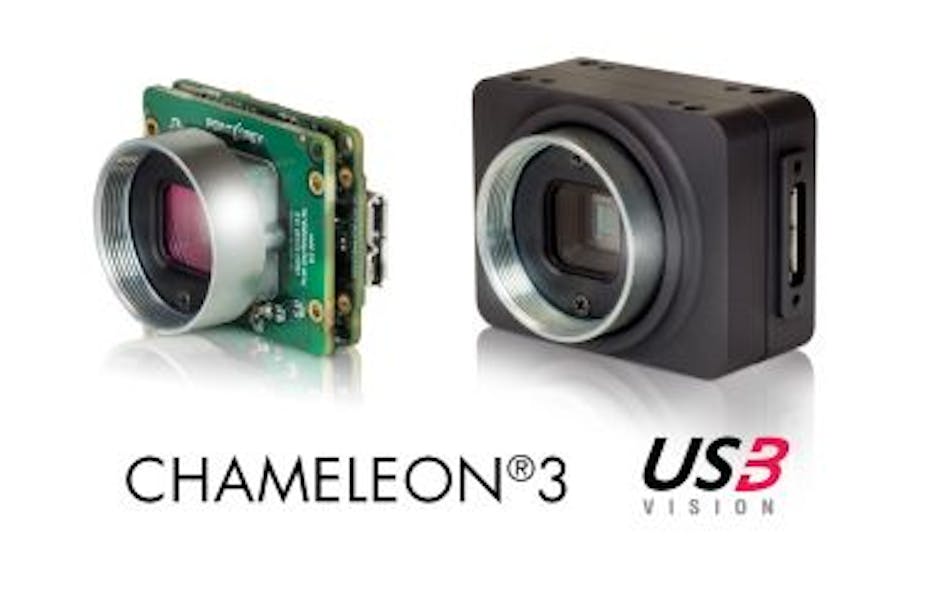

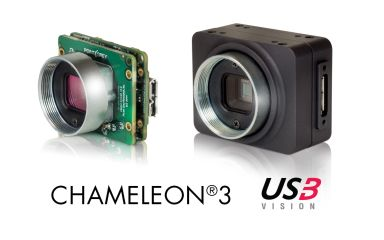

Chameleon3 Board And Case Copy

Chameleon3 cameras are the latest generation of USB3 Vision cameras from Point Grey that can easily be converted to a board-level version. The first three models in the line are the 1.3 MPixel CM3-U3-13S2 and CM3-U3-13Y3 cameras and the 2.8 MPixel CM3-U3-28S4. The CM3-U3-13S2 features a 1/3" Sony ICX445 CCD image sensor with a 3.75 µm x 3.75 µm pixel size while the CM3-U3-13Y3 features a new 1/2" ON Semiconductor Python 1300 CMOS sensor with a 4.8 µm x 4.8 µm pixel size. The 2.8 MPixel CM3-U3-28S4 features a 1/1.8" Sony ICX818 CCD sensor with a 3.69 µm x 3.69 µm pixel size. All of the cameras feature a global shutter sensor, compact 44 x 35 x 19.5 mm size, and flexible form factors such as different board-level and lens holder options. Chameleon3 cameras are suitable for use in machine vision and scientific imaging applications.

To Learn More:

Contact:Point Grey
Headquarters: Richmond, BC, Canada
Product:
Chameleon3 cameras
Key Features:
1/3" Sony ICX445, 3.75 µm x 3.75 µm pixel size (CM3-U3-13S2), 1/2" ON Semiconductor Python 1300, 4.8 µm x 4.8 µm pixel size (CM3-U3-13Y3), 1/1.8" Sony ICX818, 3.69 µm x 3.69 µm pixel size (CM3-U3-28S4.)

What Point Grey says:
View more information on the Chameleon3 cameras.
