Camera Link HS camera from Teledyne DALSA features 16k line scan image sensor

New to the Linea line of low-cost line scan cameras from Teledyne DALSA is the Linea 16k CLHS, which features a Camera Link HS interface and targets applications including flat panel display, printed circuit board, web inspection, and general purpose machine vision applications.

Content Dam Vsd En Articles 2017 05 Camera Link Hs Camera From Teledyne Dalsa Features 16k Line Scan Image Sensor Leftcolumn Article Headerimage File

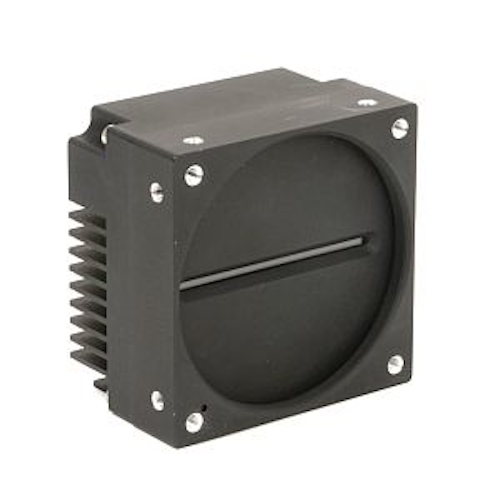

New to the Linea line of low-cost line scan cameras from Teledyne DALSA is the Linea 16k CLHS, which features a Camera Link HS interface and targets applications including flat panel display, printed circuit board, web inspection, and general purpose machine vision applications. The camera is based on a 16384 x 1 CMOS line scan image sensor with a 3.52 µm pixel size and a 71 kHz maximum line rate. With the CLHS interface, the camera can be utilized at distances of up to 15 m on copper, with support for plug-in active optical fiber cables for deployment beyond 15 m. Additionally, the camera is GenICam compliant and includes features such as flat-field correction, multiple ROI and AOI, multiple user configuration sets, and calibration coefficients for various lighting conditions.

To Learn More

Contact: Teledyne DALSA
Headquarters: Waterloo, ON, Canada
Product: Linea 16k Camera Link HS camera
Key Features: Camera Link HS interface, 16384 x 1 CMOS line scan image sensor with a 3.52 µm pixel size and a 71 kHz maximum line rate.

What Teledyne DALSA says:
View more information on the Linea 16k.
