JAI releases USB3 Vision 12.4 MPixel cameras

The newest cameras in JAI's Spark series, the SP-12401M-USB monochrome model and SP-12401C-USB color model are 12.4 MPixel cameras built around the Sony Pregius IMX304 CMOS image sensor that features 3.45 µm pixels and a noise rating of less than 2.5 e-. The SP-12401-USB camera can run 23.4 fps in 8-bit monochrome and raw Bayer at full resolution (4112 x 3008 monochrome, 4088 x 3000 color).

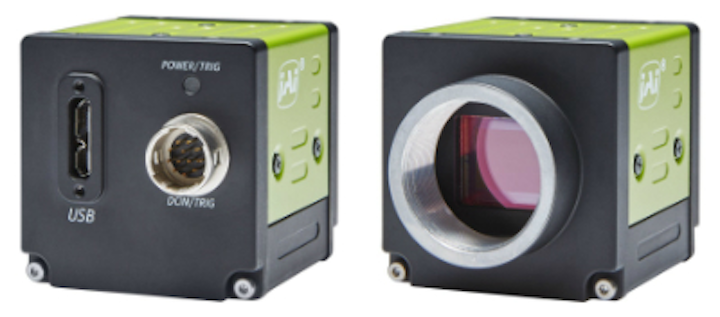

Content Dam Vsd Online Articles 2018 12 Sp 12401 Usb Product Crop

The newest cameras in JAI's Spark series, the SP-12401M-USB monochrome model and SP-12401C-USB color model are 12.4 MPixel cameras built around the Sony Pregius IMX304 CMOS image sensor that features 3.45 µm pixels and a noise rating of less than 2.5 e-. The SP-12401-USB camera can run 23.4 fps in 8-bit monochrome and raw Bayer at full resolution (4112 x 3008 monochrome, 4088 x 3000 color).

The new cameras are 44 x 44 x 44mm in size, have an 80 G shock rating, and a 10 G vibration rating. They are equipped with a standard USB3 Vision interface. A separate 12-pin connector can supply power and triggering.

The SP-12401C-USB model features 24 and 30-bit interpolation via a 5 x5 de-Bayering algorithm and a color enhancement function that can enhance the six primary and complementary colors up to twice their normal intensity. Both SP-12401-USB models feature single and multi-ROI functionality, an edge enhancement function, and support for C-mount lenses with a 1.1-inch optical format.

Pricingbutton

To Learn More:

Contact: JAI
Headquarters: San Jose, CA, USA
Product: SP-12401M-USB and SP-12401C-USB area scan cameras
Key Features: 12.4 MPixel Sony Pregius IMX304 CMOS image sensor, USB3 Vision interface, 23.4 fps in 8-bit monochrome and raw Bayer at full resolution, interpolation and enhancement for color images.

What JAI says:
View more information on the SP-12401M-USB and SP-12401C-USB area scan cameras.
