Hitachi Kokusai CMOS cameras use Mini Camera Link interface

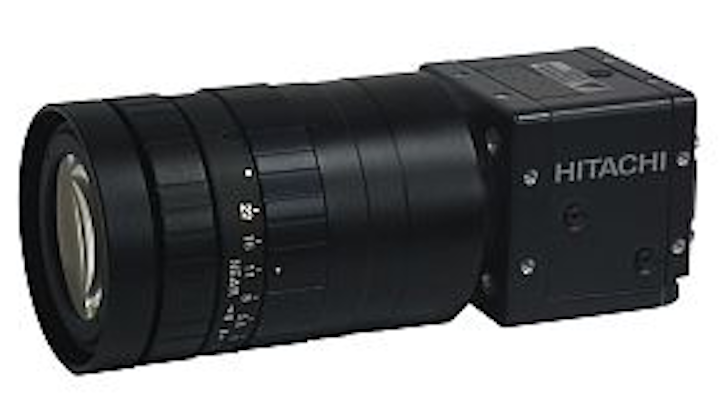

Hitachi Kokusai Electric Europe has released two new monochrome cameras with high-resolution CMOS sensors, high-speed transfer rate, and Mini Camera Link interface.

Oct 1st, 2010
Content Dam Etc Medialib New Lib Vision Systems Design Online Articles 2010 10 10609

PRESS RELEASE

New at Vision 2010

Hitachi Kokusai Electric Europe GmbH, release at Vision Show 2010, Hall 4 Booth C20, the first time in Europe 2 new Mono Chrome Cameras with high resolution CMOS sensors, high speed transfer rate and Mini „CameraLink“ interface.

The 2 cameras offer 2 and 4 Megapixel resolution with a transfer rate of 280 and 140 frames/s, Mini „CameraLink“ with auto selection of SCL or PoCL, easy to use and small dimensions of 44mm x 44mm x 41mm (W x H x D).

One of the major application fields for these new cameras of Hitachi Kokusai is the wide range of Image Processing and Machine Vision, especially everywhere high resolution with high speed data transfer is needed.

The following types are available:
-- KP-FM200WCL Mono Chrome 2/3” CMOS with 2048 x 1088 Pixel Resolution & 280 Frames/s
-- KP-FM400WCL Mono Chrome 1” CMOS with 2048 x 2048 Pixel Resolution & 140 Frames/s

Additional Technical Specifications are as follows:
-- C-Mount
-- 2 and. 4 Megapixel Resolution
-- 280 and. 140 Frames/s transfer rate at full resolution
-- Mini „CameraLink“ interface with auto selection of SCL or PoCL
-- Internal Sync
-- 50dB S/N
-- Standard trigger and customizable trigger function.
-- Electronic shutter von 1/60s up to 1/50000s or variable
-- Frame-On-Demand Function
-- Gamma
-- Partial Scan
-- Multiple windowing partial scan with up to 8 vertical areas
-- Small dimensions of 44mm (W) x 44mm (H) x 41mm (D)
-- Low weight only 130g
-- external 12V DC supply via 12 pin connector or power via „CameraLink“ (PoCL)
-- 12 Month warranty

Source: Hitachi Kokusai Electric Europe GmbH
