Infrared image sensor from ULIS is designed for easy installation

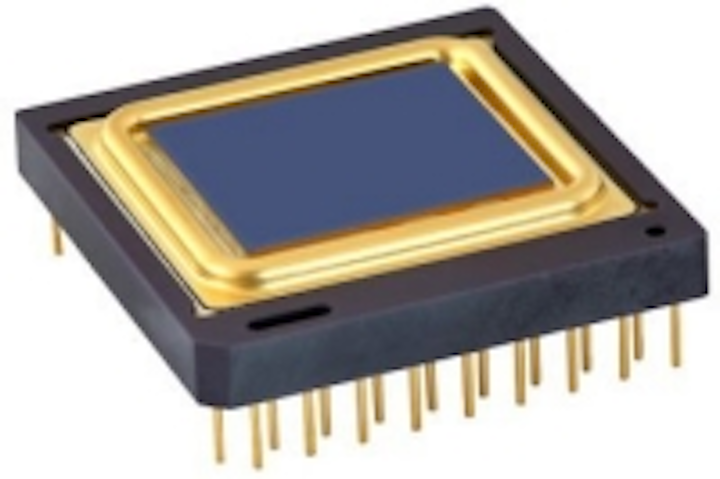

The Pico640 Gen2 from ULIS (a Sofradir subsidiary) is a 640 x 480 infrared image sensor with a 17 µm pixel size that is designed for cameras used in security, night vision, military, and other infrared imaging applications.

Content Dam Vsd En Articles 2015 03 Infrared Image Sensor From Ulis Is Designed For Easy Installation Leftcolumn Article Thumbnailimage File

The Pico640 Gen2 from ULIS (a Sofradir subsidiary) is a 640 x 480 infraredimage sensor with a 17 µm pixel size that is designed for cameras used in security, night vision, military, and other infrared imaging applications. The Pico640 Gen2 is based onamorphous silicon (a-Si) microbolometer technology and uses Hync/VSync clocking and an I2C standard communication protocol that is compatible with commercial camera standards, making it something that can be installed with relative ease. In addition, the sensor features a spectral response of 8 – 14 µm and an upgraded NEDT (noise equivalent differential temperature), which enables a longer detection range and crisper images from previous models.

To Learn More:

Contact:ULIS
Headquarters: Veurey-Voroize, France
Product:
Pico640 Gen2 infrared sensor
Key Features:
 640 x 480 amorphous silicon (a-Si) microbolometer, 17 µm pixel size, 8 – 14 µm spectral response.

What ULIS says:
View more information on the Pico640 Gen2.
