Telecentric lenses from Edmund Optics offer stable operation in manufacturing inspections

TECHSPEC in-line compact telecentric lenses from Edmund Optics are offered in a variety of working distance and magnification options.

Sep 23rd, 2011

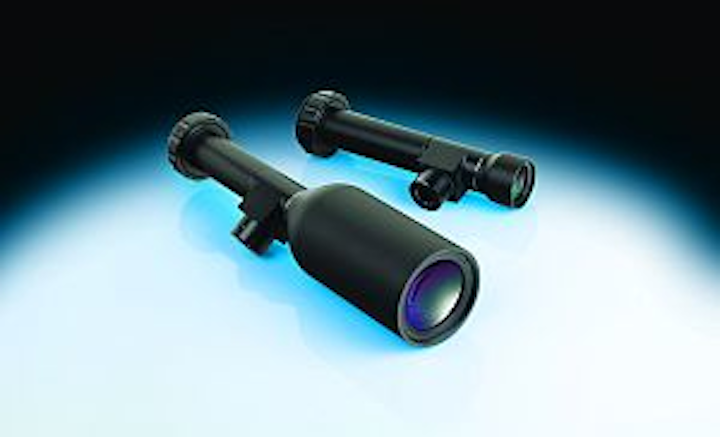

Edmund Optics TECHSPEC telecentric lenses
Edmund Optics TECHSPEC telecentric lenses

TECHSPEC in-line compact telecentric lenses are offered in a variety of working distance and magnification options. They feature a fixed aperture and focus to remain stable in operation on factory floors and assembly lines. The in-line port accepts 1/4-in. and smaller fiberoptic light guides.
Edmund Optics
Barrington, NJ, USA

-- Posted by Vision Systems Design

View More New Products

---
NEW PRODUCT PRESS RELEASE

TECHSPEC In-Line Compact Telecentric Lenses

Ideal for Circuit Boards and Semiconductor Inspection

Barrington, NJ - Edmund Optics (EO), a provider of optical components, introduces its TECHSPEC In-Line Compact Telecentric Lenses. The lenses feature an ultra-compact design with a small footprint for ease of integration where space is at a premium. They feature large maximum sensor formats with the benefit of even front illumination for excellent accuracy and resolution.

In-line port accepts ¼" or smaller Fiber Optic Light Guides
TECHSPEC In-Line Compact Telecentric Lenses provide excellent telecentricity with very low distortion, which makes them suited for easy integration into gauging systems and for volume inspection applications. The in-line port accepts ¼-inch and smaller Fiber Optic Light Guides, making them ideal for imaging reflective objects and electronics. They are suited for a wide variety of demanding applications with limited space requirements such as circuit boards and semiconductor inspection.

Fixed aperture and focus
TECHSPEC In-Line Compact Telecentric Lenses were designed with the needs and requirements of our customers in mind. They are offered in a variety of working distance/magnification options. These lenses feature a fixed aperture and focus, which are ideal for implementation into factory floors and assembly lines, where the f/# and focus will remain fixed over time with no adjustments needed, saving time and resources.

Competitively priced for excellent value
TECHSPEC In-Line Compact Telecentric Lenses are ideal for a wide range of applications from single unit inspection stations to high volume implementation.

SOURCE: Edmund Optics
