First Sensor announces rugged CMOS cameras for automotive and mobile OEM applications

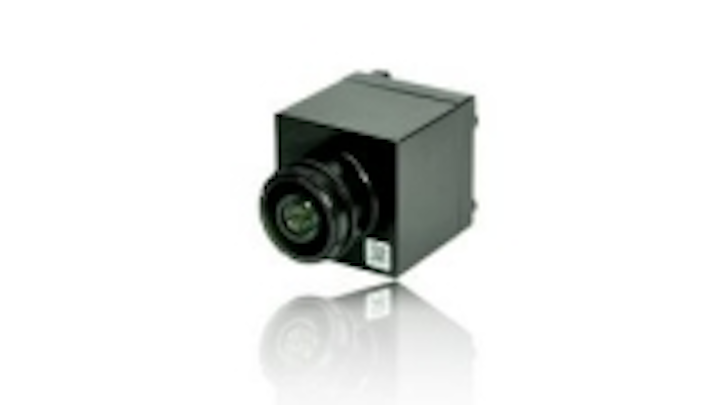

First Sensor has released two models in its new Blue Eagle camera line, both of which are designed for use in harsh environmental requirements, including automotive and mobile OEM applications.

Jul 16th, 2014
Content Dam Vsd En Articles 2014 07 First Sensor Announces Rugged Cmos Cameras For Automotive And Mobile Oem Applications Leftcolumn Article Thumbnailimage File

First Sensor has released two models in its new Blue Eagle camera line, both of which are designed for use in harsh environmental requirements, including automotive and mobile OEM applications. One of the new Blue Eagle models features a 1 MPixel OV10635 CMOS image sensor from OmniVision that has a 4.2 µm x 4.2 µm pixel size. The other new camera features a 1.2 MPixel AR0132AT CMOS image sensor image from Aptina that has a 3.75 µm x 3.75 µm pixel size. Both models achieve a frame rate of 30 fps and feature a two-wire Ethernet interface and power via Power over Ethernet, Power over APIX, or Power over Coax, in addition to standard DC power supply. In addition, the cameras feature IP68/IP6k9k housings and an operating temperature range of -40°F to 203°F. These cameras are suitable for use in automotive, agricultural equipment, and mining applications.

To Learn More:

Contact:
First Sensor
Headquarters
: Berlin, Germany
Product: Blue Eagle camera line
Key Features:
1 MPixel OV10635 CMOS sensor, 4.2 µm x 4.2 µm pixel size (1 MPixel model), 1.2 MPixel AR0132AT CMOS sensor, 3.75 µm x 3.75 µm pixel size (1.2 MPixel model), 30 fps.

What First Sensor says:
View a press release on the Blue Eagle camera line.
